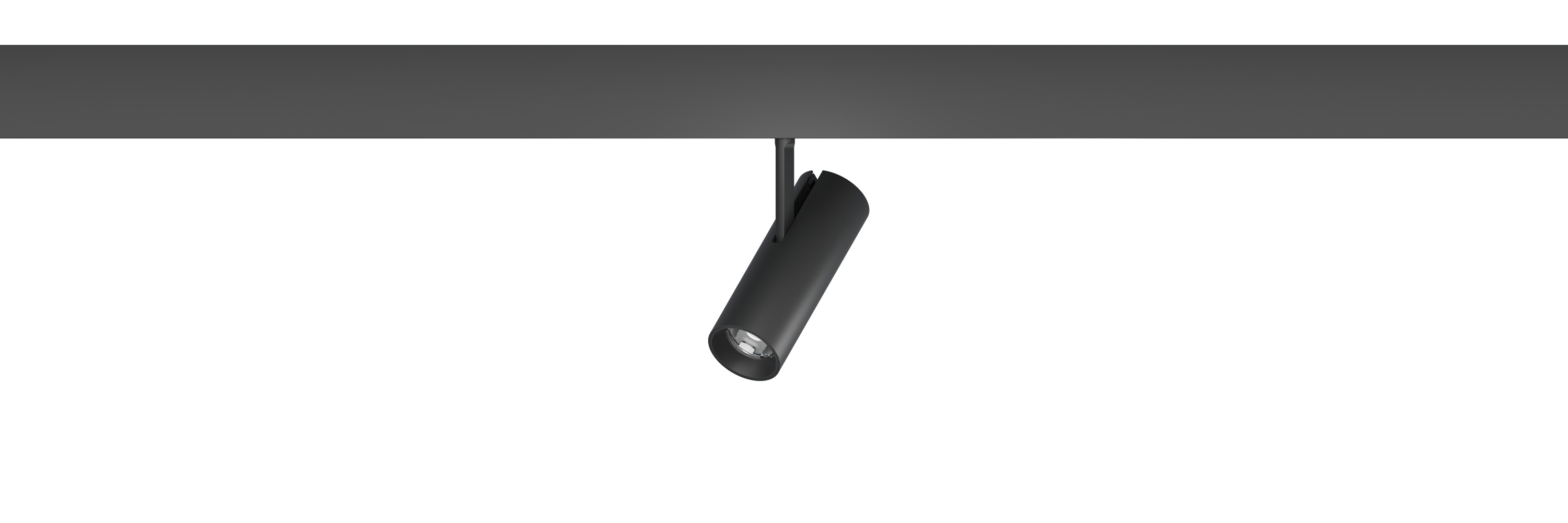

62.04531 SPECTRUM Magnetic Track Lighting
Connected Load | 14.3W |
Colour Temperature | 2700/3000/3500/4000K |
Colour Rendition Index | CRI 90 |
Optics | LENS |
Beam Angle | 19D/24D/36D/43D |
Track Phases | Low Voltage Track Lighting |
Light Distribution | 62.04531 SPECTRUM Magnetic Track Lighting |
Luminous Flux Of The Luminaire | 1083lm |
Luminaire Efficacy | 76lm/W |
Colour Deviation | SDCM<5 |
Light Source | LED |
LED Type | COB |
Dimming Method | 1-10V/ Dali |
Cover Material | Aluminum |
Body Material | Aluminum |
IP Rating | IP20 |
Housing Colour | Sandy White/ Sandy Black |
Weight | 0.45Kg |
Technical Region | Input 48V |

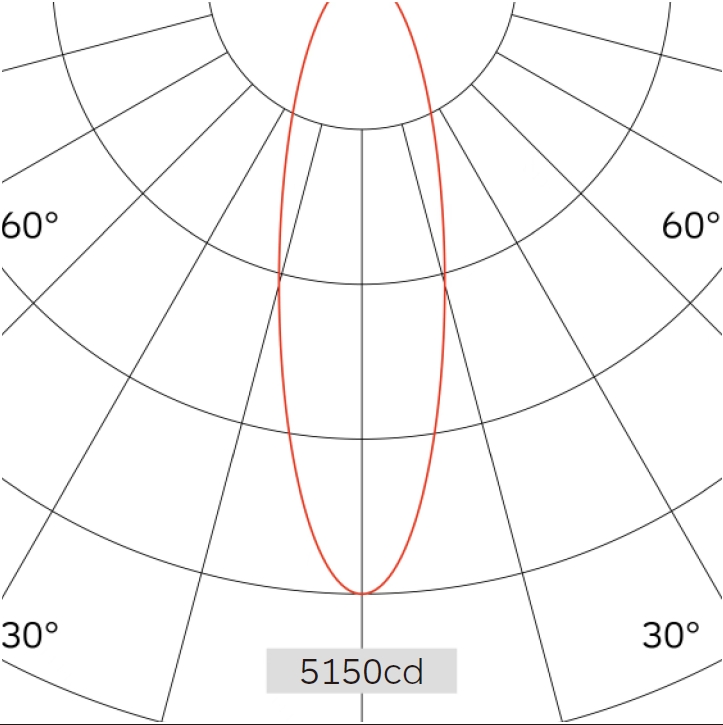

Light Beam Table
h(m) | E(lx) | D(m) |
---|---|---|
19° | ||
1 | 5150.19 | 0.36 |
2 | 1287.55 | 0.72 |
3 | 572.24 | 1.08 |
4 | 321.89 | 1.44 |
5 | 206.01 | 1.80 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
-
A
Brandoor
-
B
Zoom
-
C
Standard Beam Angle
-
D
Narrow Beam Angle
-
E
UGR<19
-
F
Wall washer
Download
Photometric Files

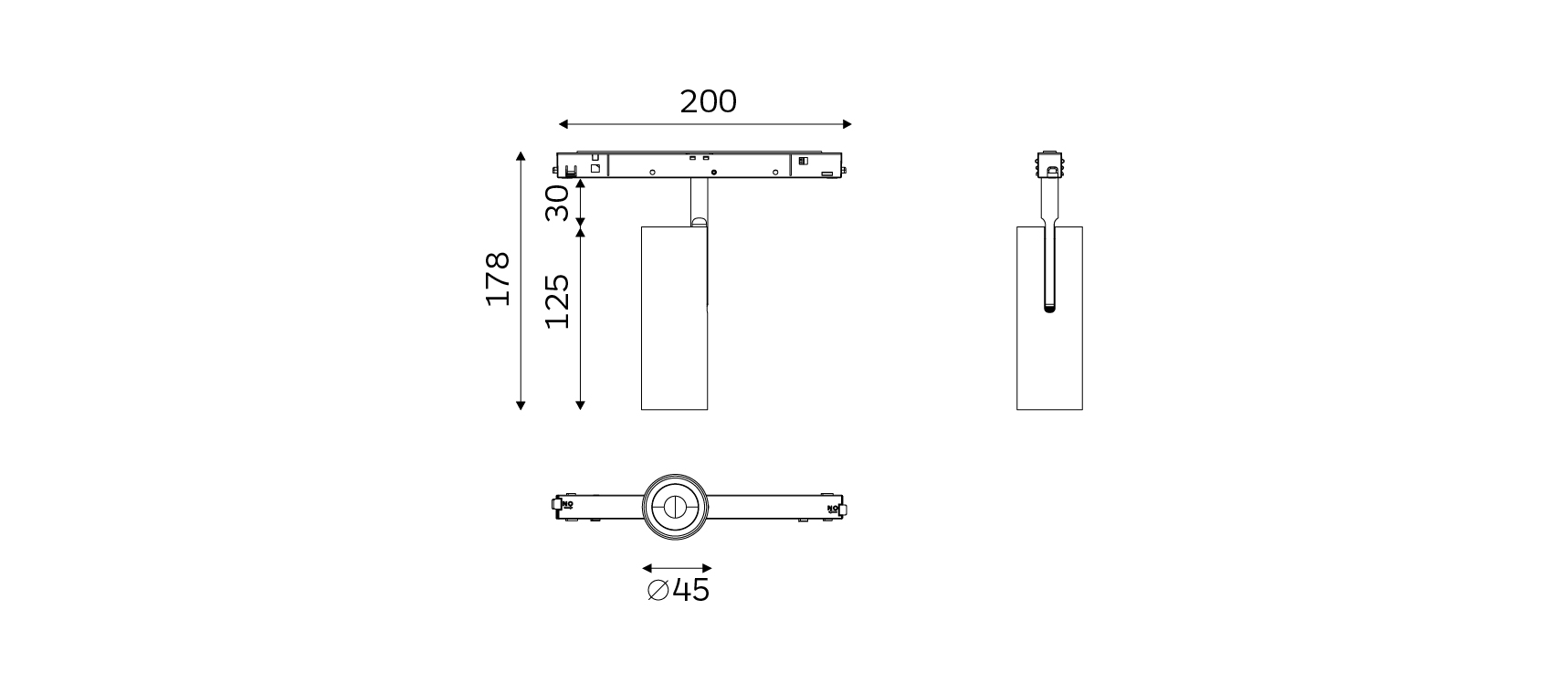

Technical Drawings
