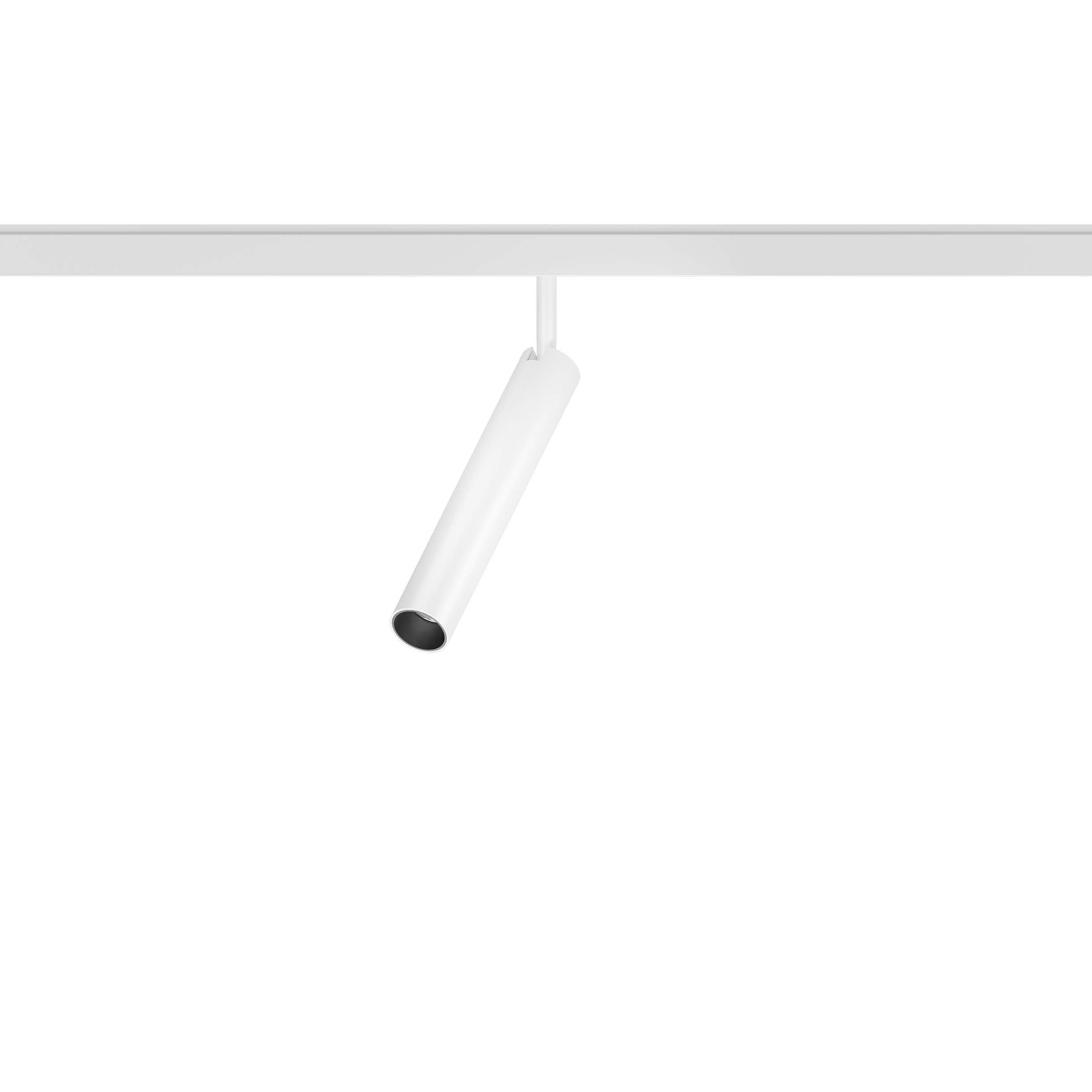

62.02515 Lanky Low Voltage Track Light
| Connected Load | 9W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 20D/25D/35D/55D |
| Track Phases | Low Voltage Track |
| Light Distribution | 62.02515 Lanky Low Voltage Track Light |
| Luminous Flux Of The Luminaire | 510lm |
| Luminaire Efficacy | 56lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.4Kg |
| Technical Region | Input 48V |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 25° | ||
| 1 | 2217.27 | 0.44 |
| 2 | 554.32 | 0.87 |
| 3 | 246.36 | 1.31 |
| 4 | 138.58 | 1.75 |
| 5 | 88.69 | 2.19 |
Application areas: clothing shops, furniture shops and other brand boutiques, car displays, jewelry, star hotels, high-end clubs, museums, professional windows, and other high-end commercial places.
Suitable accessories

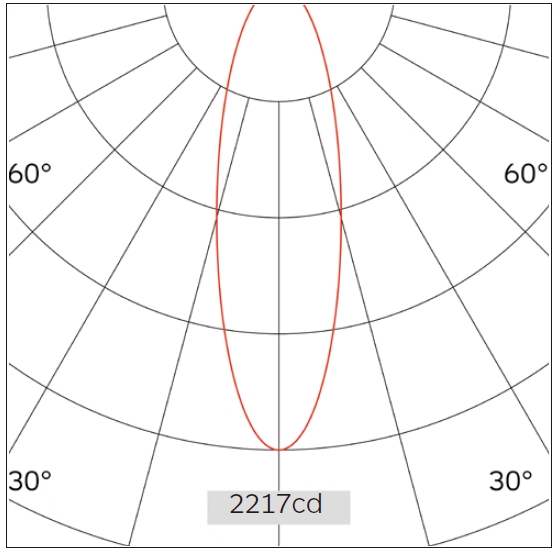

Photometric Files

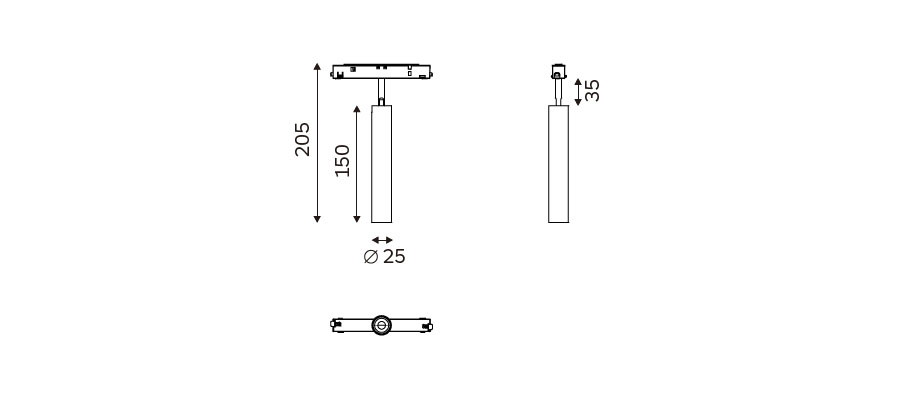

Technical Drawings
