52.05523 INTERO Recessed Downlight
| Connected Load | 10W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 27D/30D/43D/54D |
| Cut Out | 55mm |

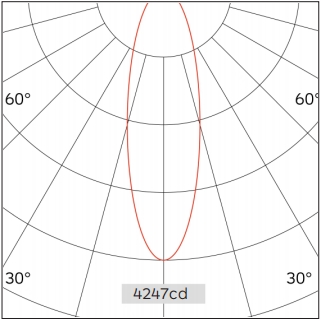

| Light Distribution | 52.05523 INTERO Recessed Downlight |
| Luminous Flux Of The Luminaire | 1173lm |
| Luminaire Efficacy | 117.3lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.5Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 27° | ||
| 1 | 4247.31 | 0.47 |
| 2 | 1061.83 | 0.93 |
| 3 | 471.92 | 1.40 |
| 4 | 265.46 | 1.87 |
| 5 | 169.89 | 2.33 |
Widely used in star hotels,high-end clubs, homes,offices and stores, Large shopping malls, chain stores and so on.
Suitable accessories
Photometric Files

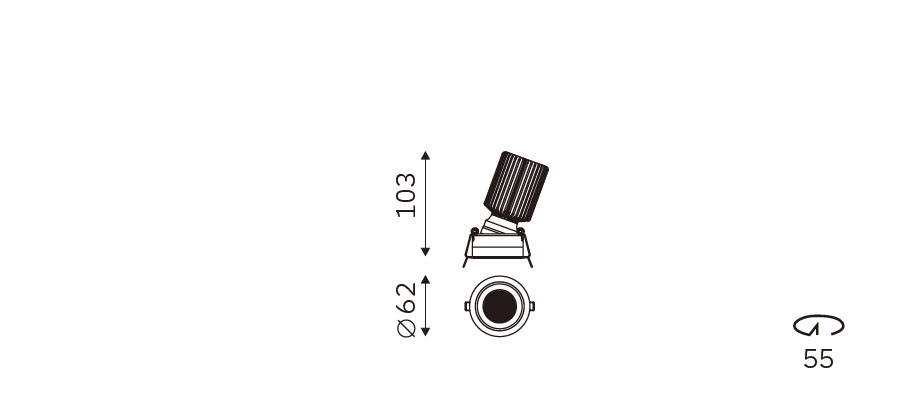

Technical Drawings
