52.06013 LEKO Recessed Downlight
| Connected Load | 9.3W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 26D/32D/46D/54D |
| Cut Out | 60mm |

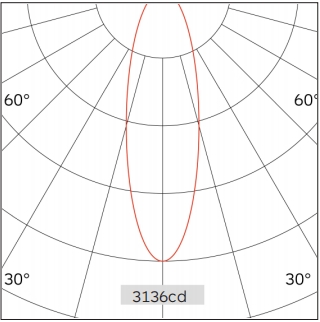

| Light Distribution | 52.06013 LEKO Recessed Downlight |
| Luminous Flux Of The Luminaire | 1000lm |
| Luminaire Efficacy | 107.53lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.6Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 26° | ||
| 1 | 3136.08 | 0.47 |
| 2 | 784.02 | 0.93 |
| 3 | 348.45 | 1.40 |
| 4 | 196.01 | 1.87 |
| 5 | 125.44 | 2.34 |
Application for: household, shopping malls, hotels,clubs, stores and jewelry display lighting field.
Suitable accessories
Download
Photometric Files
Technical Drawings
