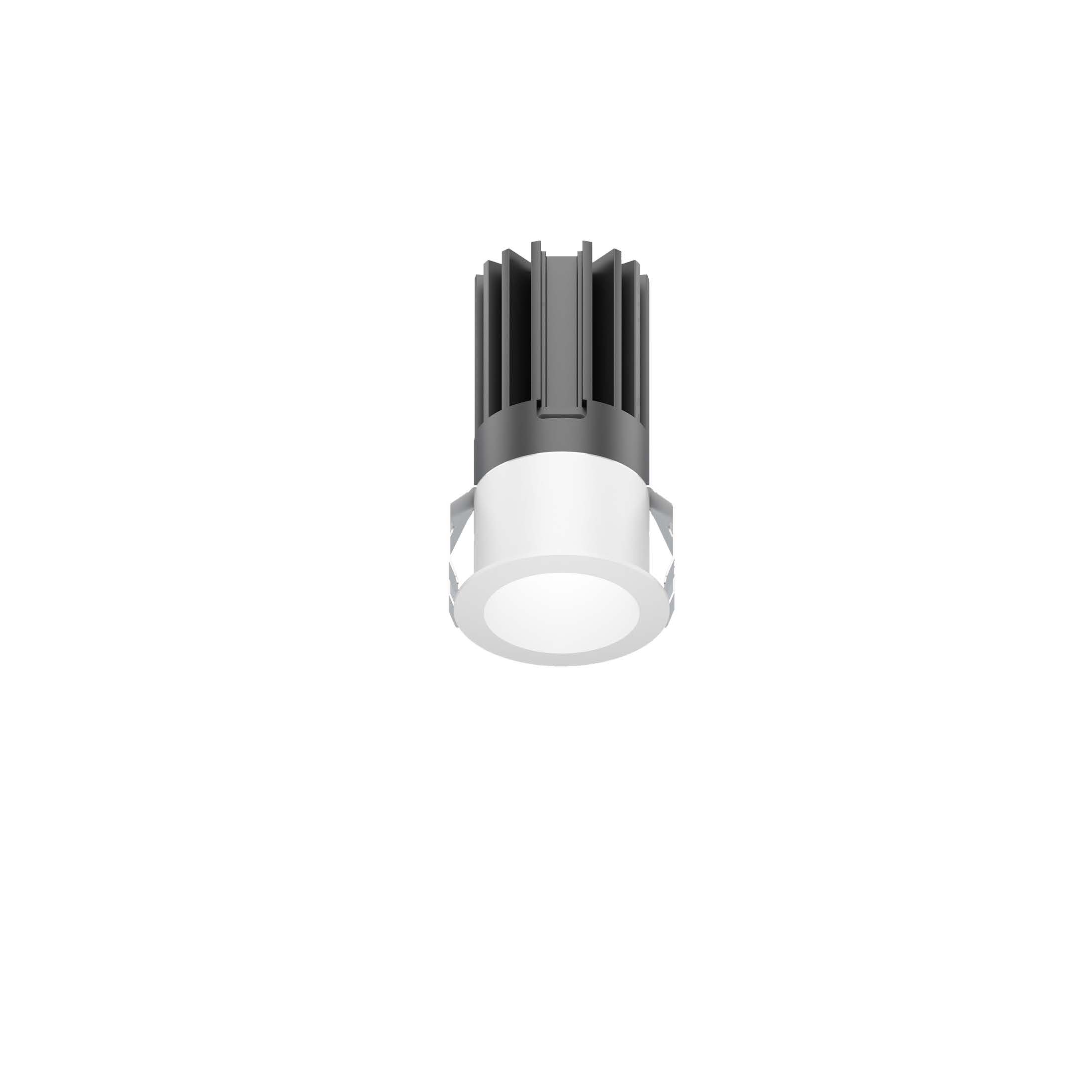

51.03822 MINI PRO Recessed Downlight
| Connected Load | 7.6W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 20D/27D/35D/43D |
| Cut Out | 38mm |

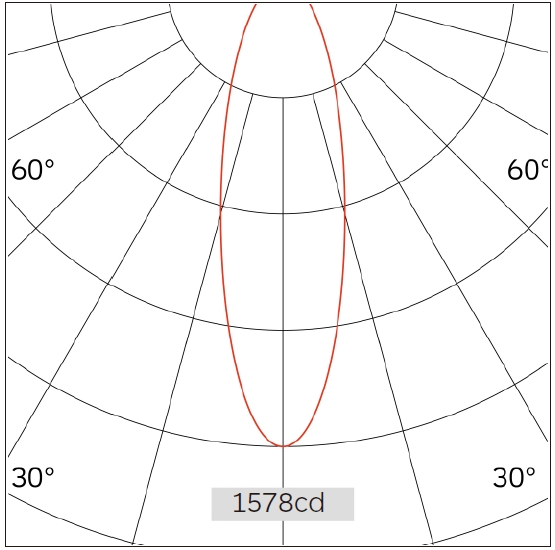

| Light Distribution | 51.03822 Mini Pro Recessed Downlight |
| Luminous Flux Of The Luminaire | 470lm |
| Luminaire Efficacy | 61.8lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.4Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 27° | ||
| 1 | 1578.28 | 0.48 |
| 2 | 394.57 | 0.95 |
| 3 | 175.36 | 1.43 |
| 4 | 98.64 | 1.90 |
| 5 | 63.13 | 2.38 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

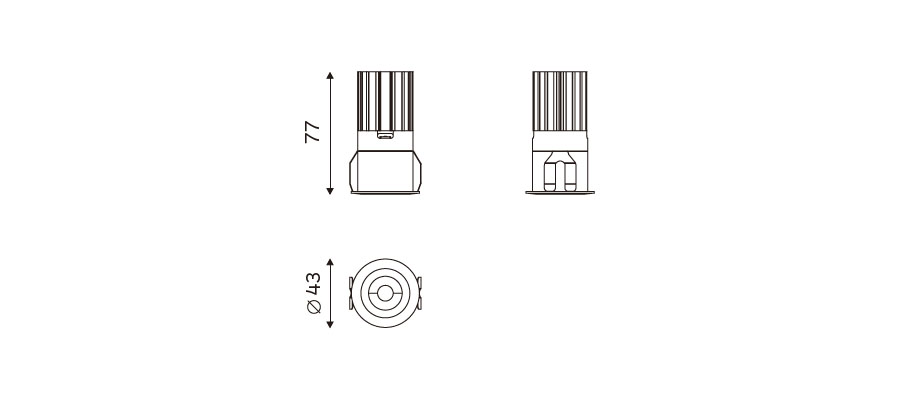

Technical Drawings
