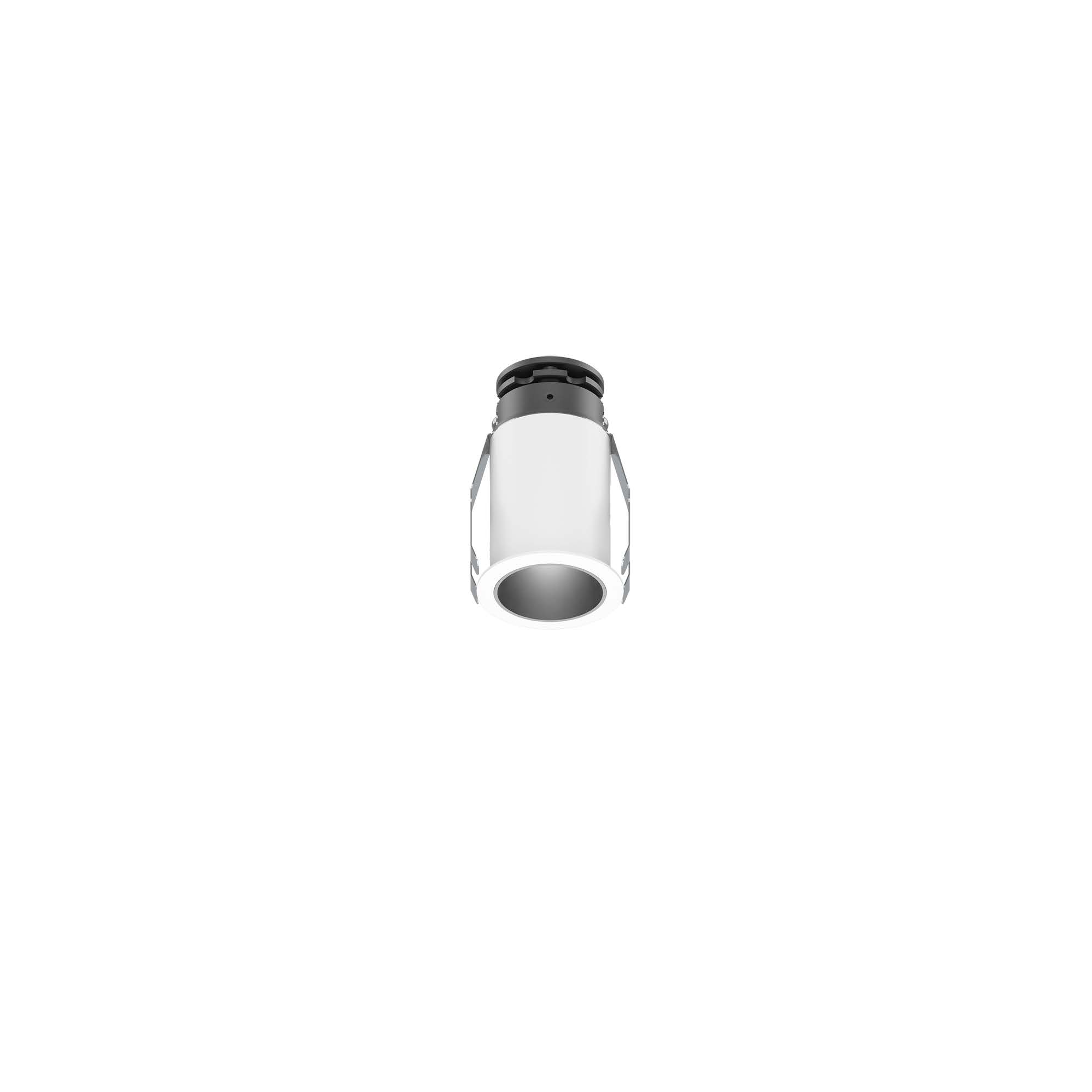

51.03022 MINI Recessed Downlight
| Connected Load | 3.6W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 19D/24D/35D/53D |
| Cut Out | 30mm |
| Light Distribution | 51.03022 Mini Recessed Downlight |
| Luminous Flux Of The Luminaire | 232lm |
| Luminaire Efficacy | 64.4lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.3Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 24° | ||
| 1 | 1094.23 | 0.43 |
| 2 | 273.56 | 0.86 |
| 3 | 121.58 | 1.29 |
| 4 | 68.39 | 1.72 |
| 5 | 43.77 | 2.15 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Download
Photometric Files

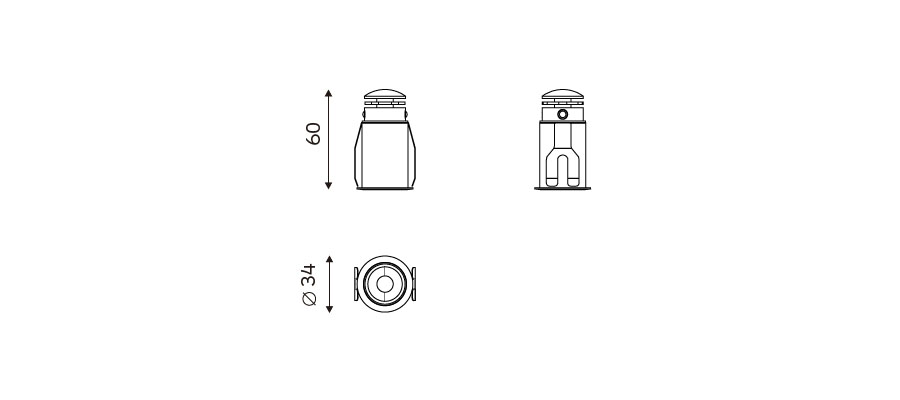

Technical Drawings
