52.07526 EURO Recessed Downlight
| Connected Load | 13W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 20D/27D/39D/48D |
| Cut Out | 75mm |

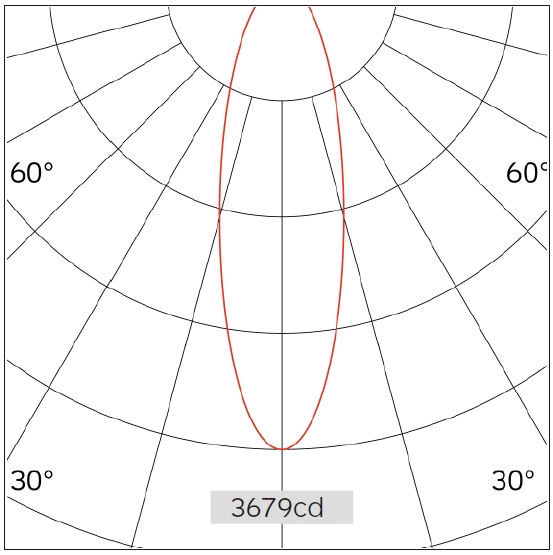

| Light Distribution | 52.07526 Euro Recessed Downlight |
| Luminous Flux Of The Luminaire | 1005lm |
| Luminaire Efficacy | 77.3lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.7Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 27° | ||
| 1 | 3679.60 | 0.49 |
| 2 | 919.90 | 0.97 |
| 3 | 408.84 | 1.46 |
| 4 | 229.98 | 1.94 |
| 5 | 147.18 | 2.43 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
