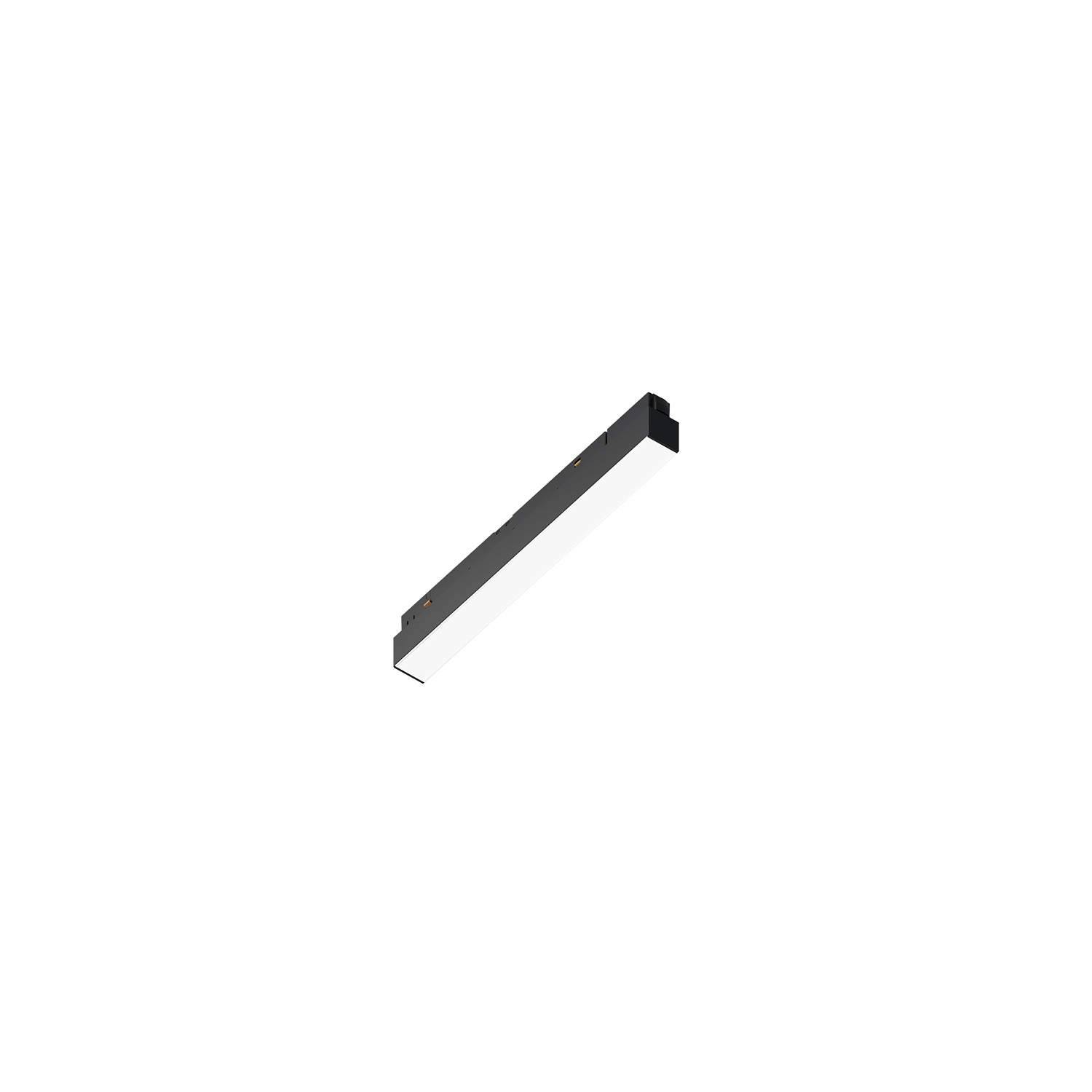

61.02346 SPARK 20 General Lighting
| Connected Load | 10W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | PC cover |
| Beam Angle | 113D |
| Track | Low Voltage Track |

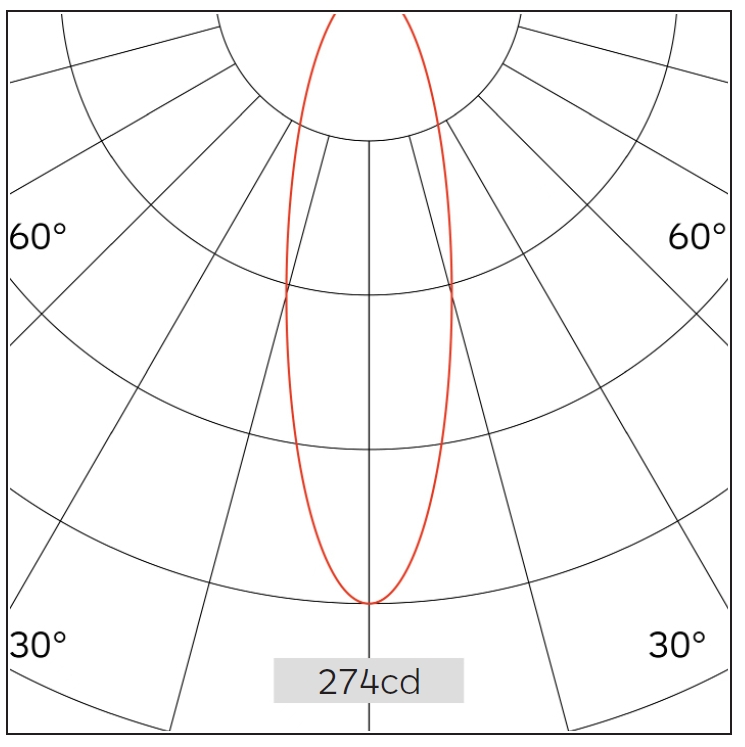

| Light Distribution | 61.02346 SPARK 20 General Lighting |
| Luminous Flux Of The Luminaire | 805lm |
| Luminaire Efficacy | 77lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | SMD |
| Dimming Method | 1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.3Kg |
| Technical Region | Input 48V |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 113° | ||
| 1 | 274 | 3.03 |
| 2 | 69 | 6.06 |
| 3 | 31 | 9.09 |
| 4 | 17.17 | 12.12 |
| 5 | 10.99 | 15.15 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
Photometric Files

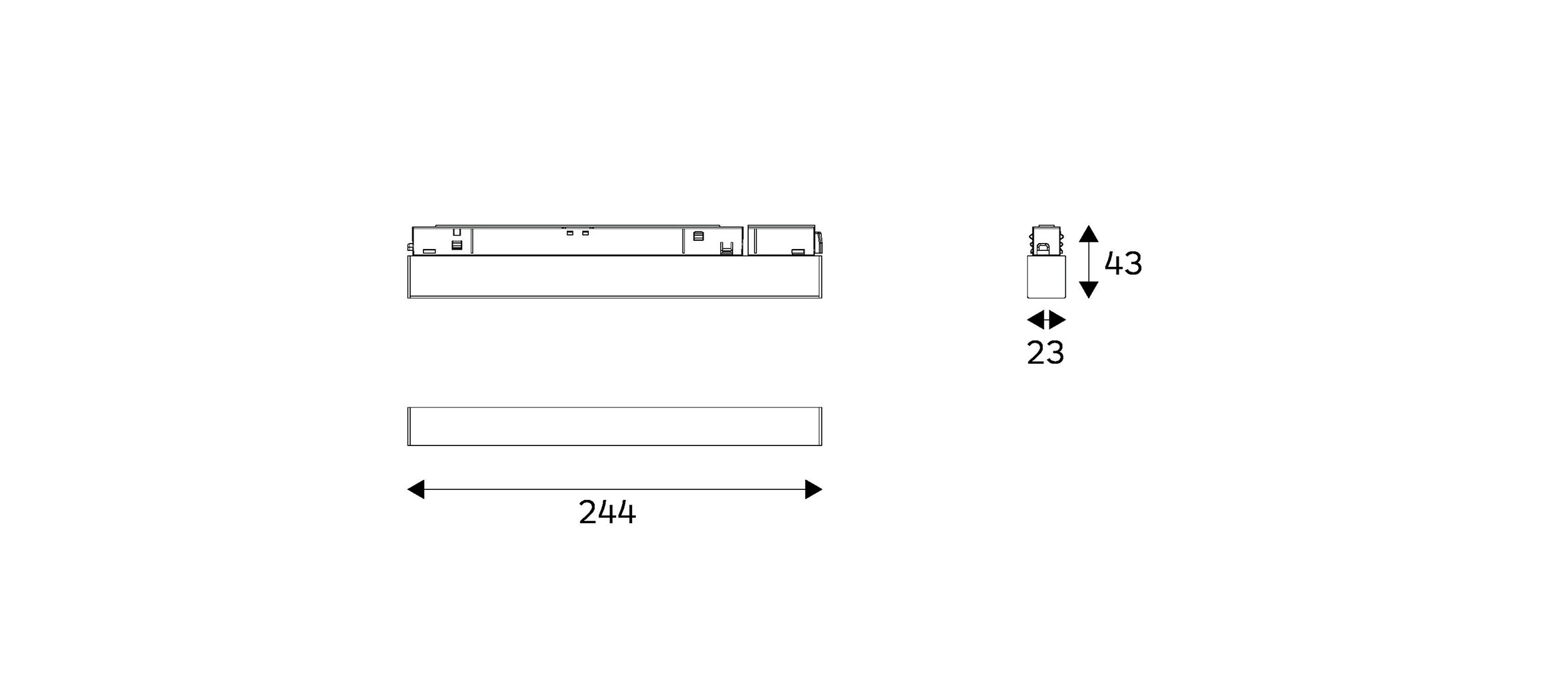

Technical Drawings
