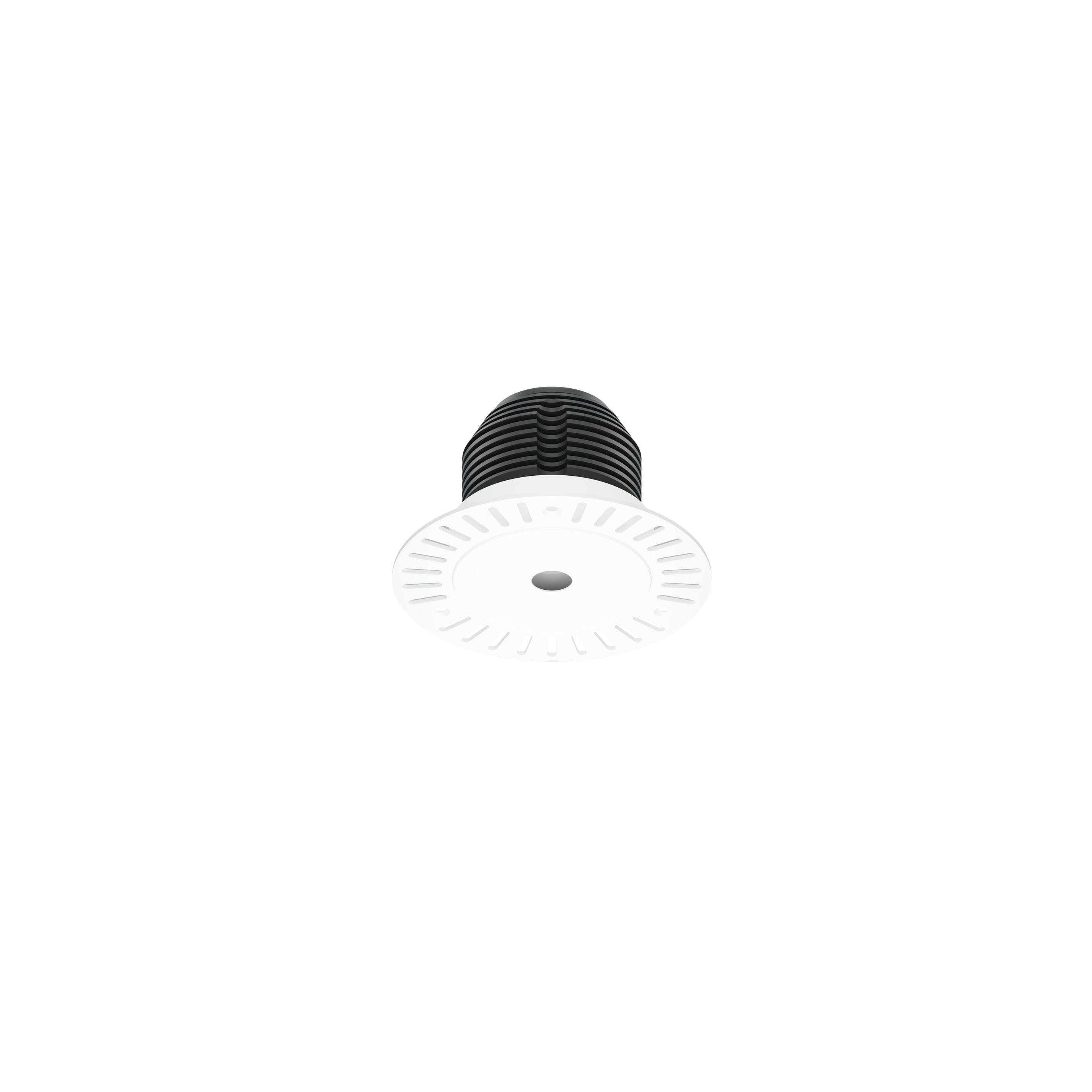

57.07013 VERO Recessed Downlight Trimless
| Connected Load | 8W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 27D/44D |

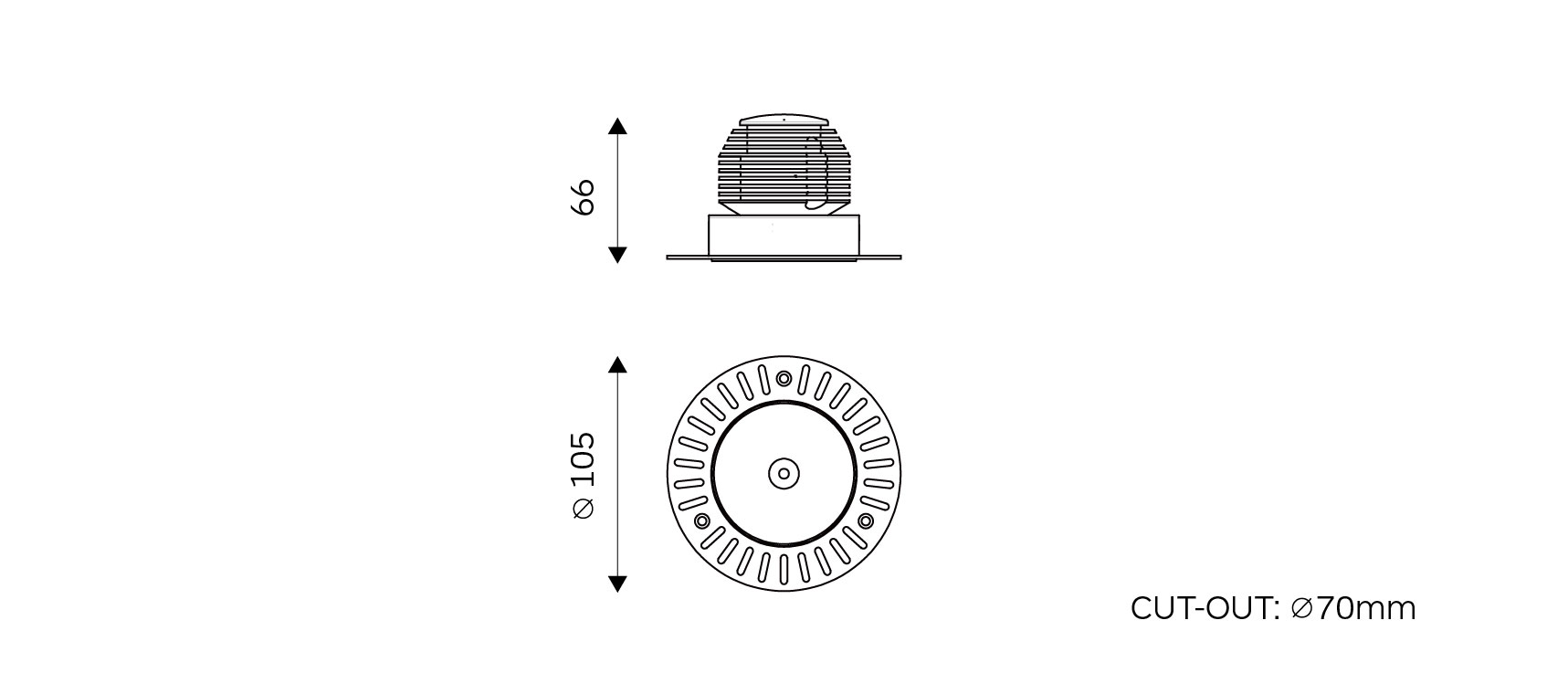

| Cut Out | 70mm |
| Light Distribution | 57.07013 VERO Recessed Downlight Trimless |
| Luminous Flux Of The Luminaire | 446lm |
| Luminaire Efficacy | 55.7lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.8Kg |
| Technical Region | 220-240V 50/60Hz |

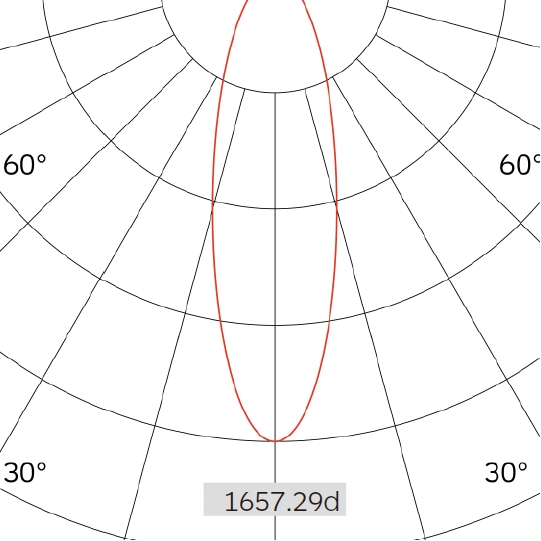

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 27° | ||
| 1 | 1657.29 | 0.48 |
| 2 | 414.32 | 0.95 |
| 3 | 184.14 | 1.43 |
| 4 | 103.58 | 1.90 |
| 5 | 66.29 | 2.38 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Download
Photometric Files
Technical Drawings
