52.09526 SILO Recessed Downlight
| Connected Load | 28W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 19D/25D/39D/48D |
| Cut Out | 95mm |
| Light Distribution | 52.09526 SILO Recessed Downlight |
| Luminous Flux Of The Luminaire | 2974lm |
| Luminaire Efficacy | 106lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.85Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 39° | ||
| 1 | 6863.21 | 0.72 |
| 2 | 1715.80 | 1.44 |
| 3 | 762.58 | 2.16 |
| 4 | 428.95 | 2.88 |
| 5 | 274.53 | 3.59 |
Designed from the user's point of view, the luminaire can be freely replaced with lenes and reflectors according to the customer's needs and is also available trim and trimless.
Suitable accessories
-
AWhite
-
BChrome
-
CGun Black
-
DMatt Black
Download
Photometric Files

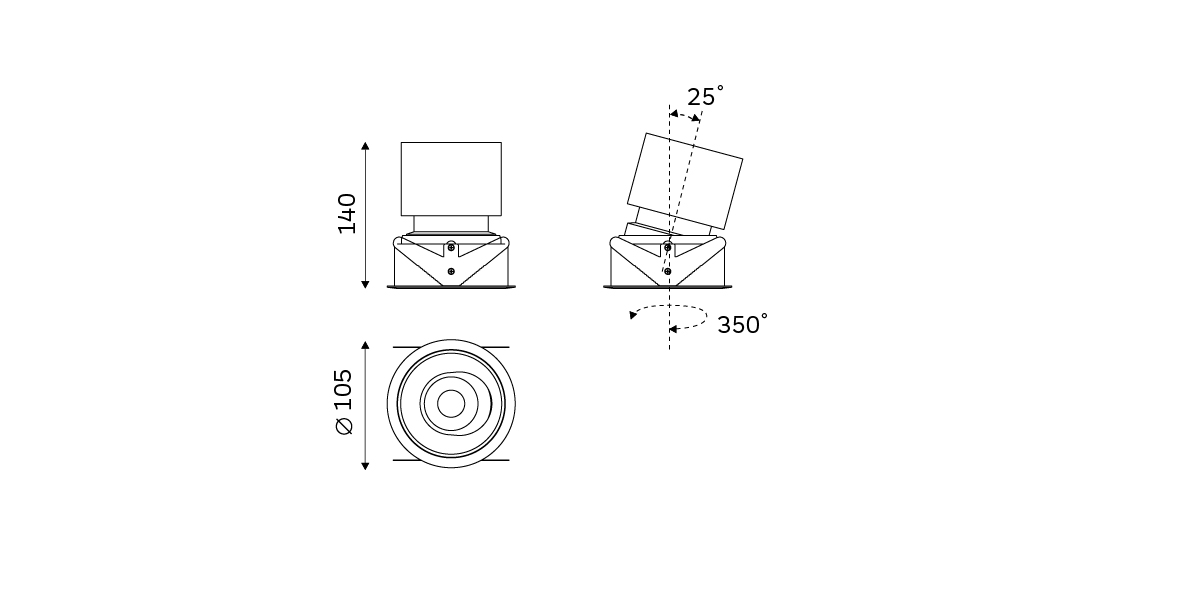

Technical Drawings
