51.05516 SLIM Recessed Downlight Fixed
| Connected Load | 15W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 20D/25D/36D/47D |
| Cut Out | 55mm |

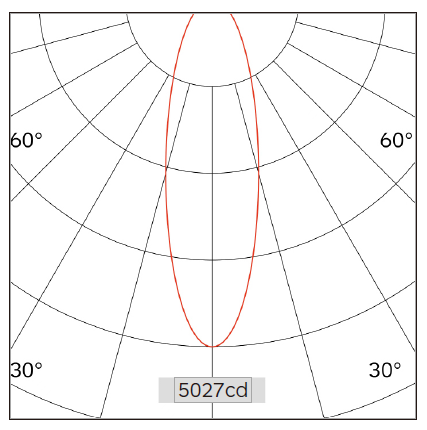

| Light Distribution | 51.05516 SLIM Recessed Downlight Fixed |
| Luminous Flux Of The Luminaire | 1053lm |
| Luminaire Efficacy | 70lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.3Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 25° | ||
| 1 | 5027.62 | 0.45 |
| 2 | 1256.91 | 0.89 |
| 3 | 558.62 | 1.34 |
| 4 | 314.23 | 1.78 |
| 5 | 201.10 | 2.23 |
Application areas: High end residential and retail projects, hotels, museums and galleries.
Suitable accessories
-
AWhite
-
BChrome
-
CGun Black
-
DMatt Black
Download
Photometric Files
Technical Drawings
