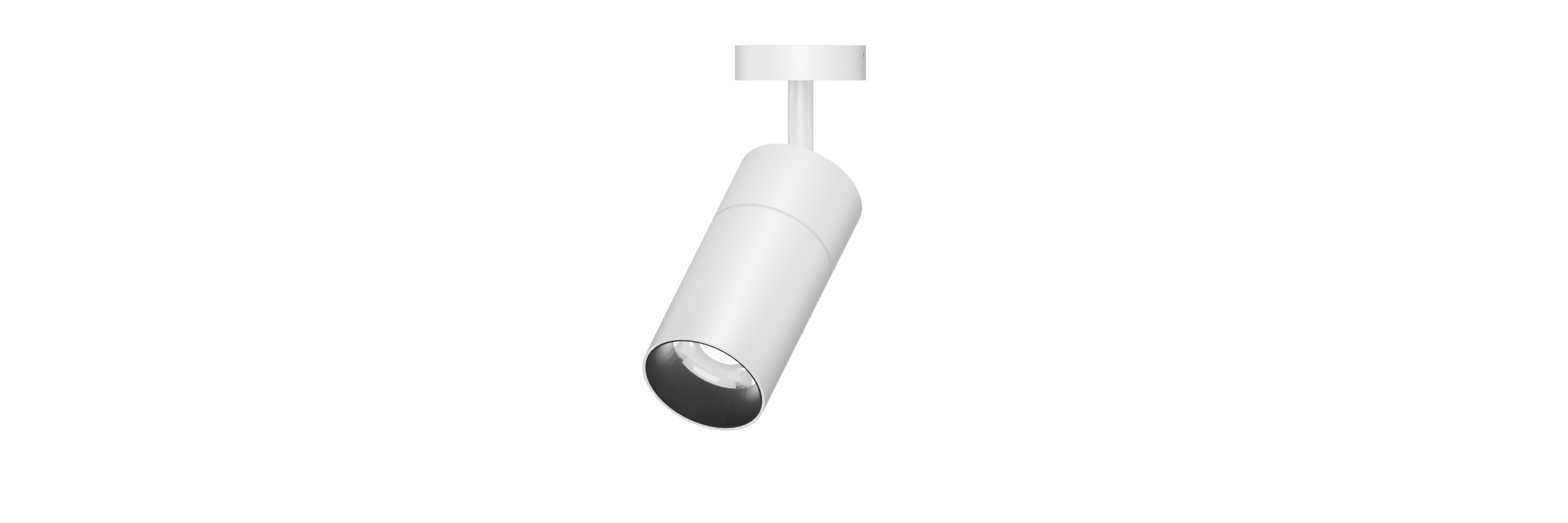

93.06213 EMMA Surface Mounted Lighting
| Connected Load | 14W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 18D/27D/38D/54D |
| Installation method | Surface Mounted |
| Light Distribution | 93.06213 EMMA Surface Mounted Lighting |
| Luminous Flux Of The Luminaire | 1627lm |
| Luminaire Efficacy | 116lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.5Kg |
| Technical Region | 220-240V 50/60Hz |

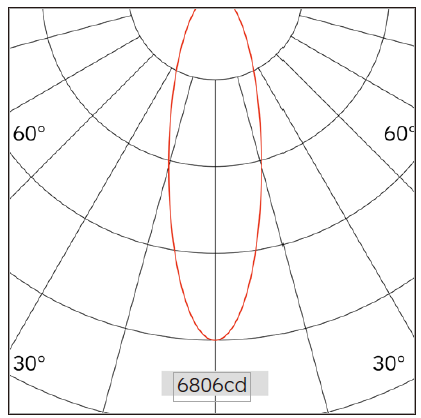

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 27° | ||
| 1 | 6806.48 | 0.48 |
| 2 | 1701.62 | 0.97 |
| 3 | 756.28 | 1.45 |
| 4 | 425.40 | 1.94 |
| 5 | 272.26 | 2.42 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
Photometric Files

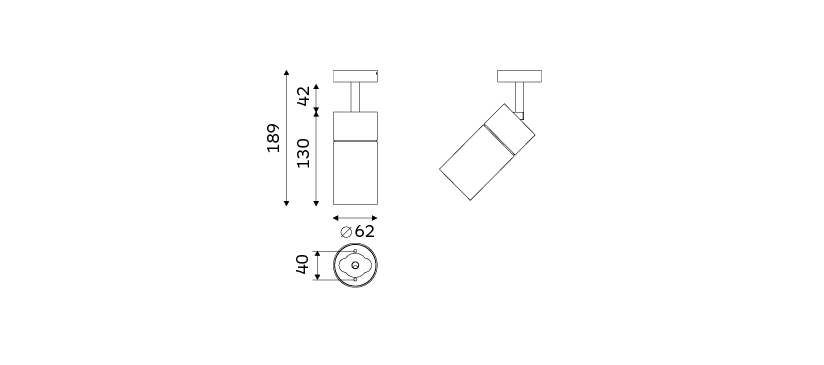

Technical Drawings
