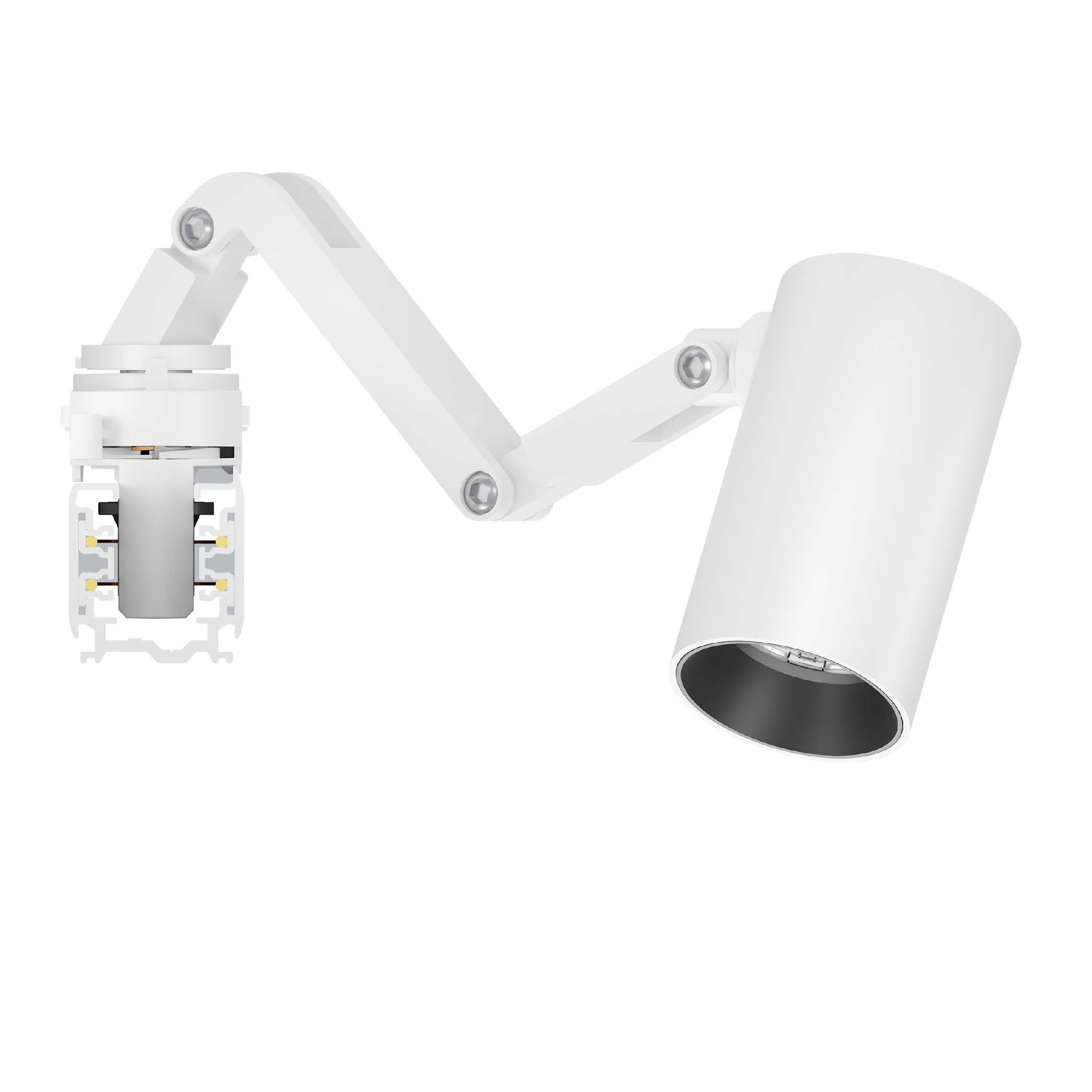

32.04530 ARMI Track Lighting
| Connected Load | 11W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 19D/29D/44D/56D |
| Track Phases | 1 Circuit/ 3 Circuit |
| Light Distribution | 32.04530 ARMI Track Lighting |
| Luminous Flux Of The Luminaire | 935lm |
| Luminaire Efficacy | 85lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Dali Dim / 0-10V Dim / Triac Dim |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.5Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 29° | ||
| 1 | 3330.81 | 0.53 |
| 2 | 832.70 | 1.06 |
| 3 | 370.09 | 1.60 |
| 4 | 208.18 | 2.13 |
| 5 | 133.23 | 2.66 |
Mainly used for the need to open the slotted, to realize the lights do not see the fixture of the high-end commercial space.
Suitable accessories
Download
Photometric Files

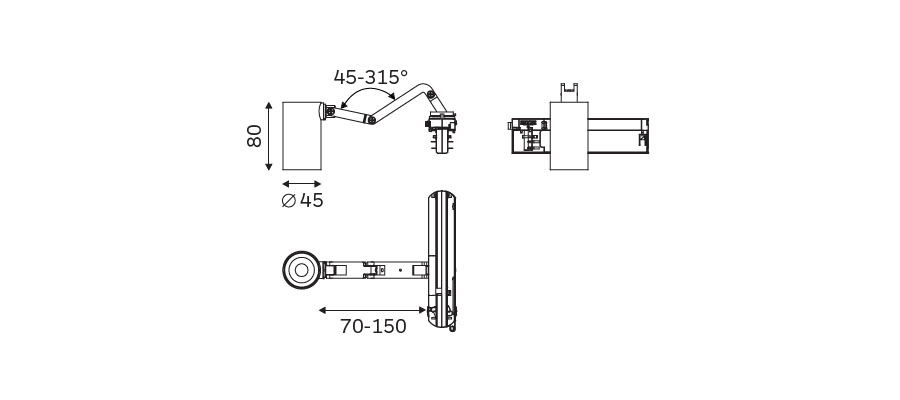

Technical Drawings
