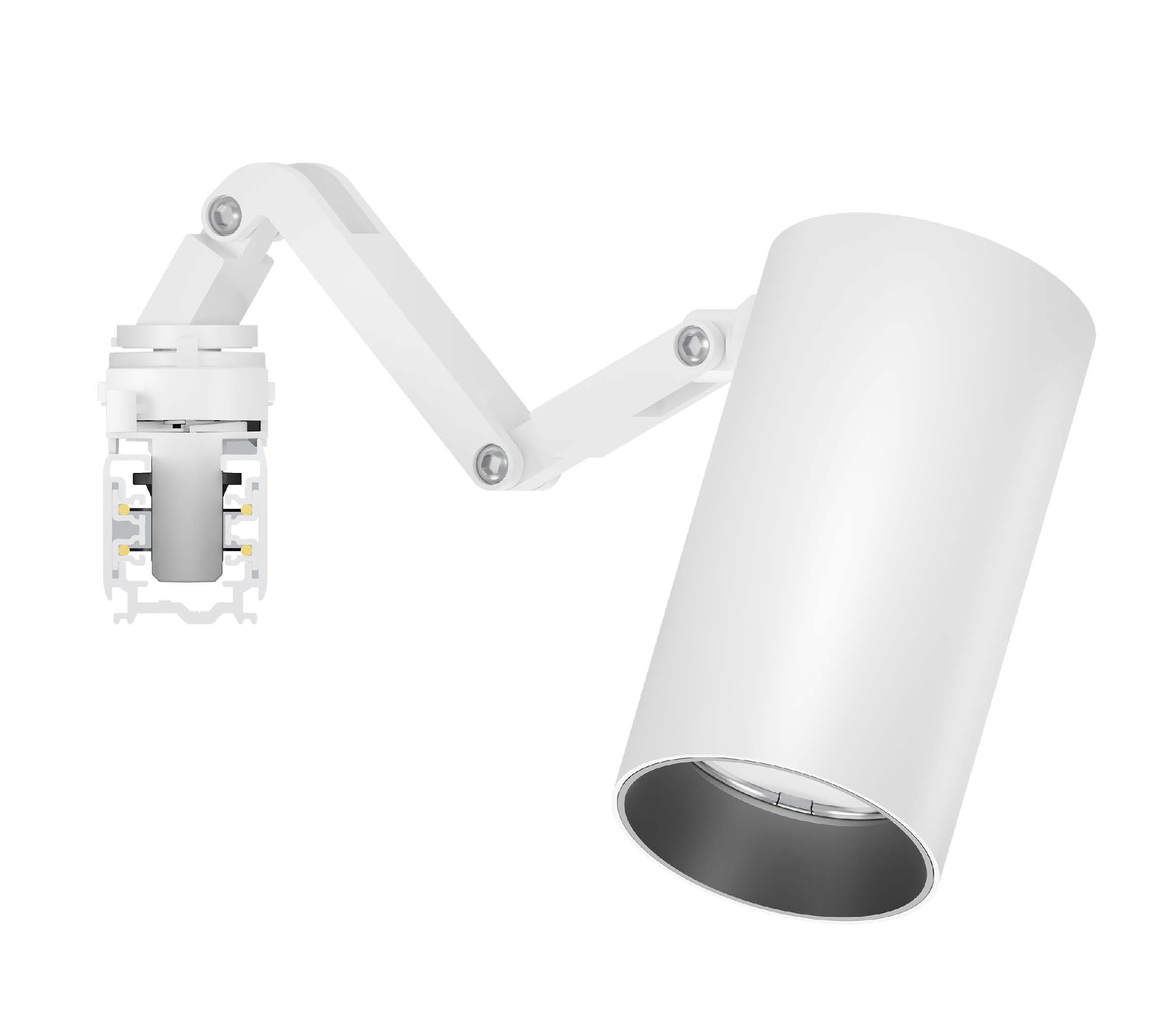

32.06528 ARMI Track Lighting
| Connected Load | 14W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 18D/27D/38D/54D |
| Track Phases | 1 Circuit/ 3 Circuit |

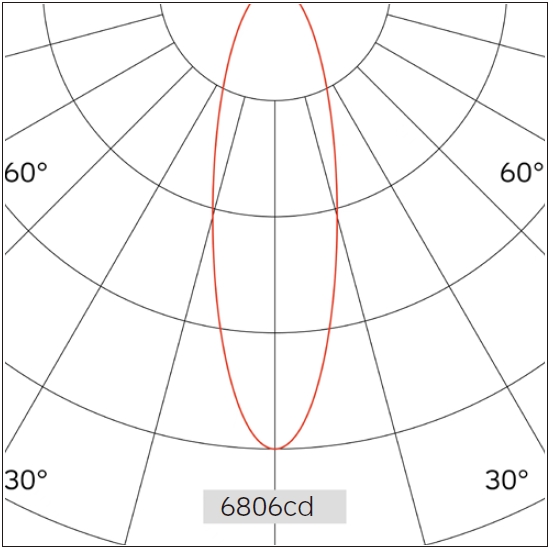

| Light Distribution | 32.06528 ARMI Track Lighting |
| Luminous Flux Of The Luminaire | 1627lm |
| Luminaire Efficacy | 116.21lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Dali Dim / 0-10V Dim / Triac Dim |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.7Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 27° | ||
| 1 | 6806.48 | 0.48 |
| 2 | 1701.62 | 0.97 |
| 3 | 756.28 | 1.45 |
| 4 | 425.40 | 1.94 |
| 5 | 272.26 | 2.42 |
Mainly used for the need to open the slotted, to realize the lights do not see the fixture of the high-end commercial space.
Suitable accessories
Download
Photometric Files

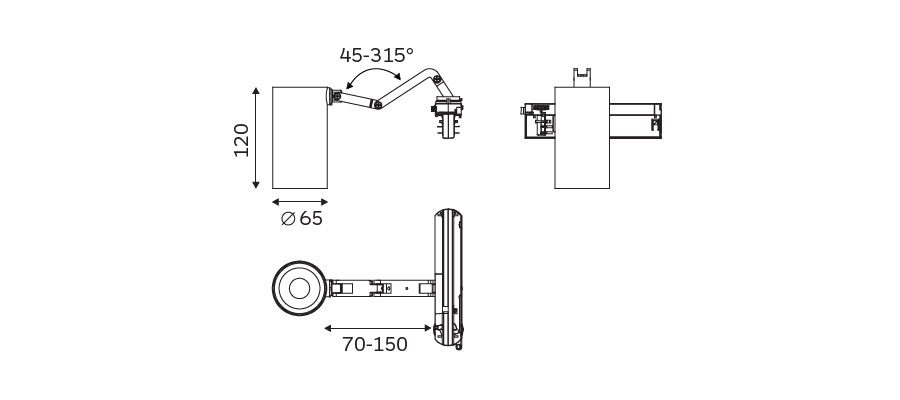

Technical Drawings
