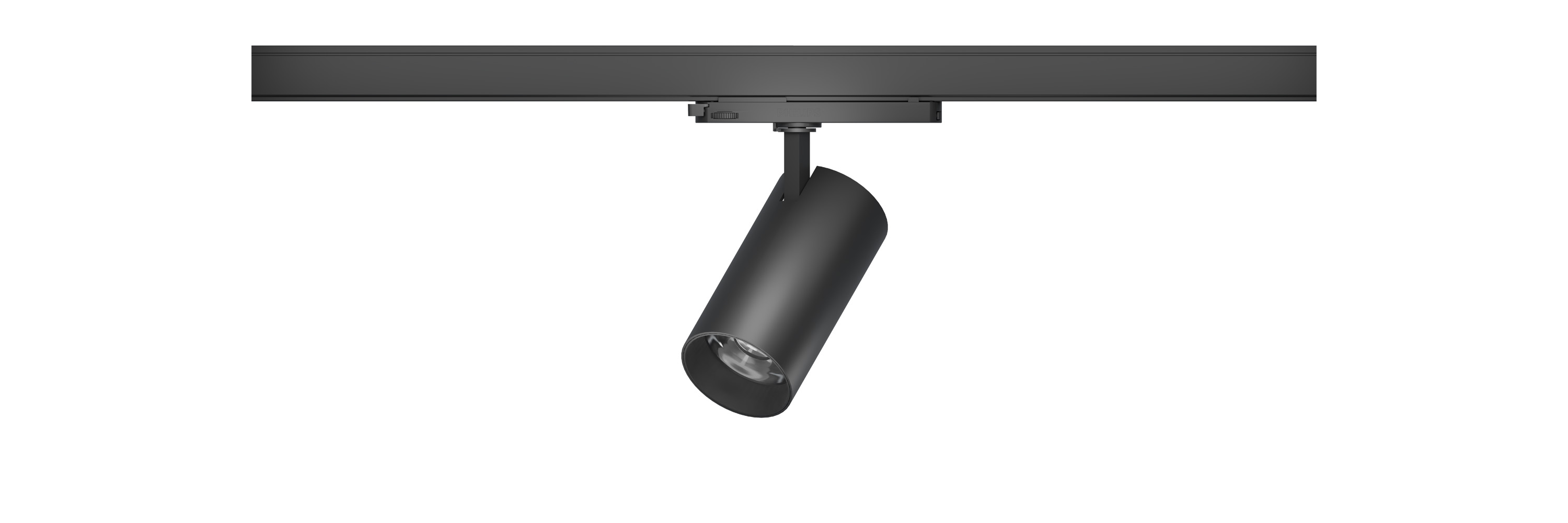

32.08012 ECO Track Lighting Intrack
Connected Load | 31W |
Colour Temperature | 2700/3000/3500/4000K |
Colour Rendition Index | CRI 90 |
Optics | LENS |
Beam Angle | 18D/26D/33D/55D |
Track Phases | 1 Circuit / 3 Circuit |

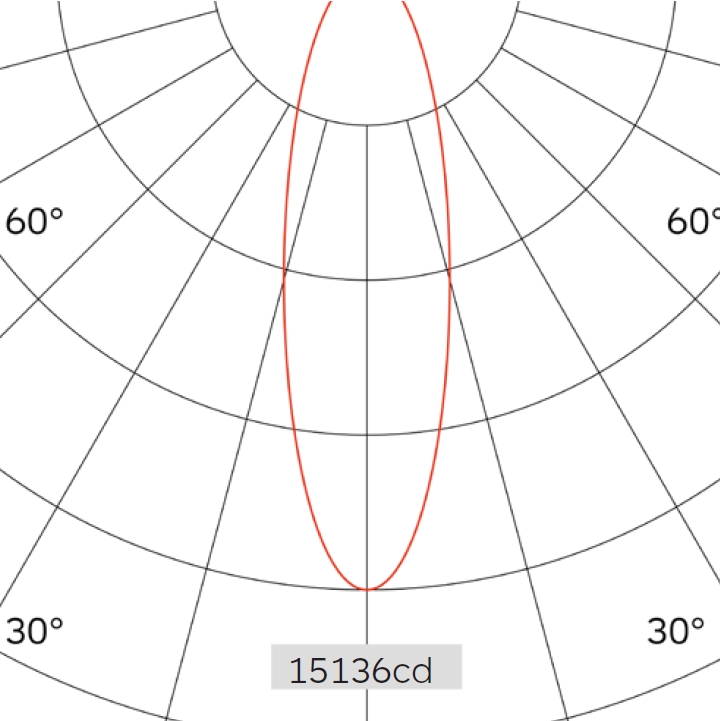

Light Distribution | 32.08012 ECO Track Lighting Intrack |
Luminous Flux Of The Luminaire | 3843lm |
Luminaire Efficacy | 122lm/W |
Colour Deviation | SDCM<5 |
Light Source | LED |
LED Type | COB |
Dimming Method | Triac/1-10V/ Dali |
Cover Material | Aluminum |
Body Material | Aluminum |
IP Rating | IP20 |
Housing Colour | Sandy White/ Sandy Black |
Weight | 0.75Kg |
Technical Region | 220-240V 50/60Hz |
Light Beam Table
h(m) | E(lx) | D(m) |
---|---|---|
18° | ||
1 | 27069.92 | 0.33 |
2 | 6767.48 | 0.66 |
3 | 3007.77 | 0.98 |
4 | 1691.87 | 1.31 |
5 | 1082.80 | 1.64 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
Photometric Files

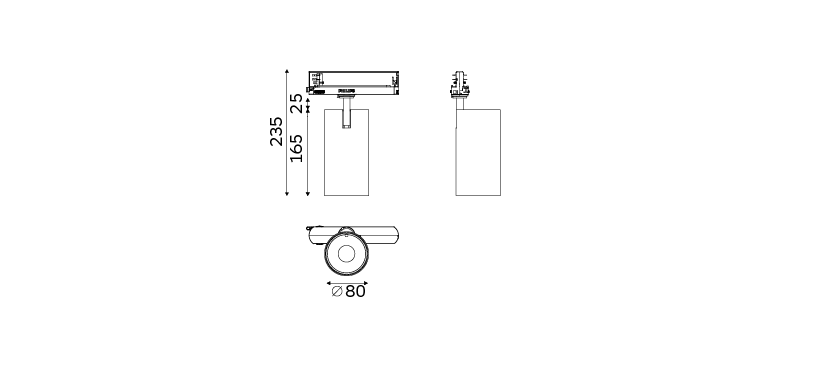

Technical Drawings
