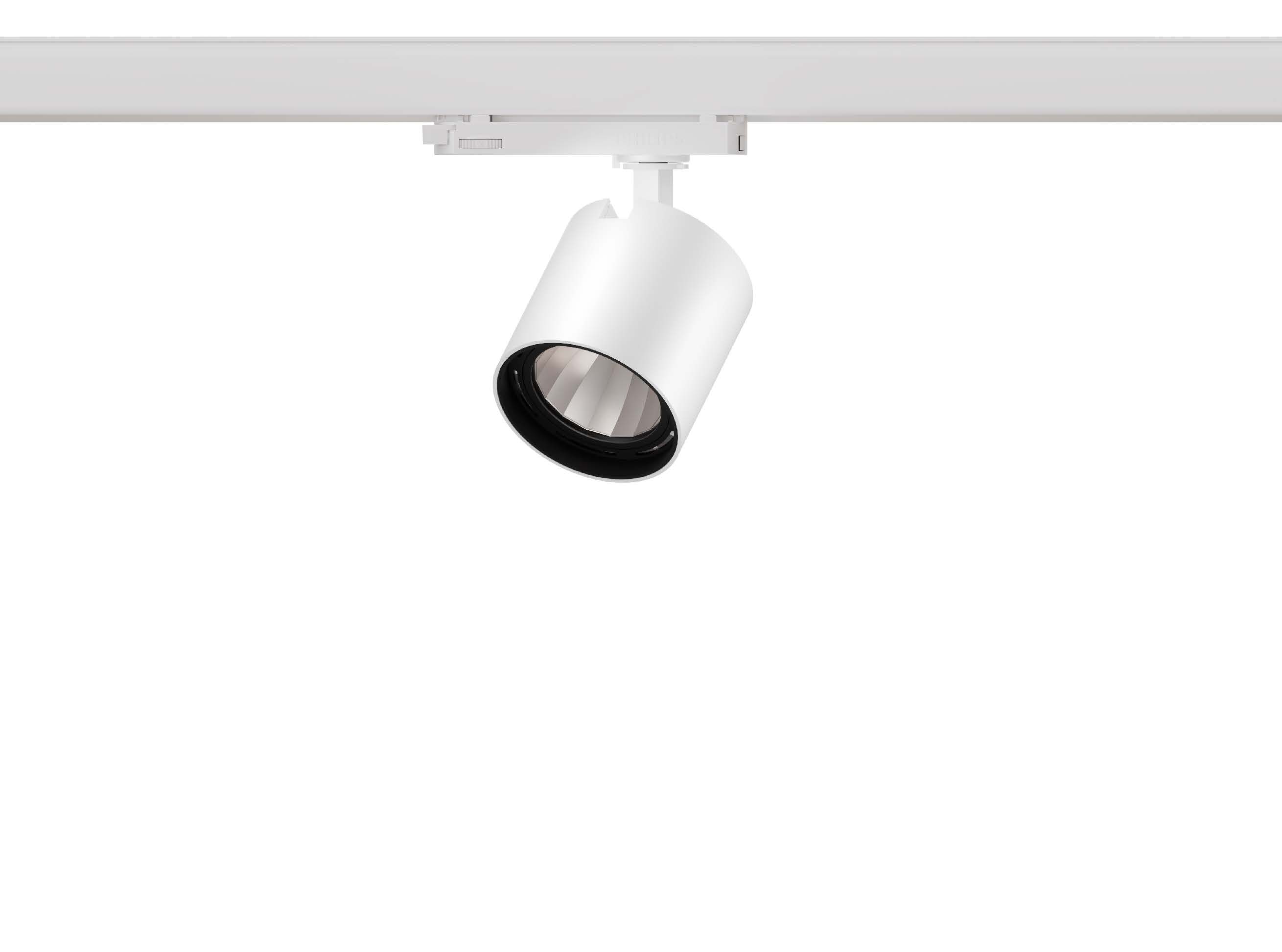

32.08423 High Lumen Pro Track Lighting
| Connected Load | 20W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | Reflector |
| Beam Angle | 14D/23D/42D/61D |
| Track Phases | 1 Circuit/ 3 Circuit |

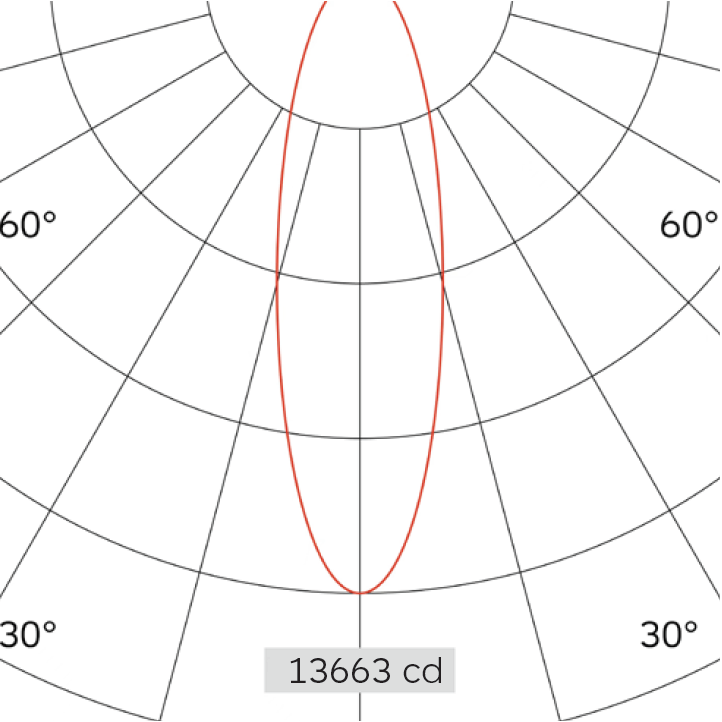

| Light Distribution | 32.08423 High Lumen Pro Track Lighting |
| Luminous Flux Of The Luminaire | 2828lm |
| Luminaire Efficacy | 141.4lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Dali Dim / 0-10V Dim / Triac Dim |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.6Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 24° | ||
| 1 | 11568.85 | 0.41 |
| 2 | 2892.21 | 0.82 |
| 3 | 1285.43 | 1.23 |
| 4 | 723.05 | 1.63 |
| 5 | 462.75 | 2.04 |
Application areas: Commercial spaces, malls, stores, retail projects, hotels, museums and gyms.
Suitable accessories
-

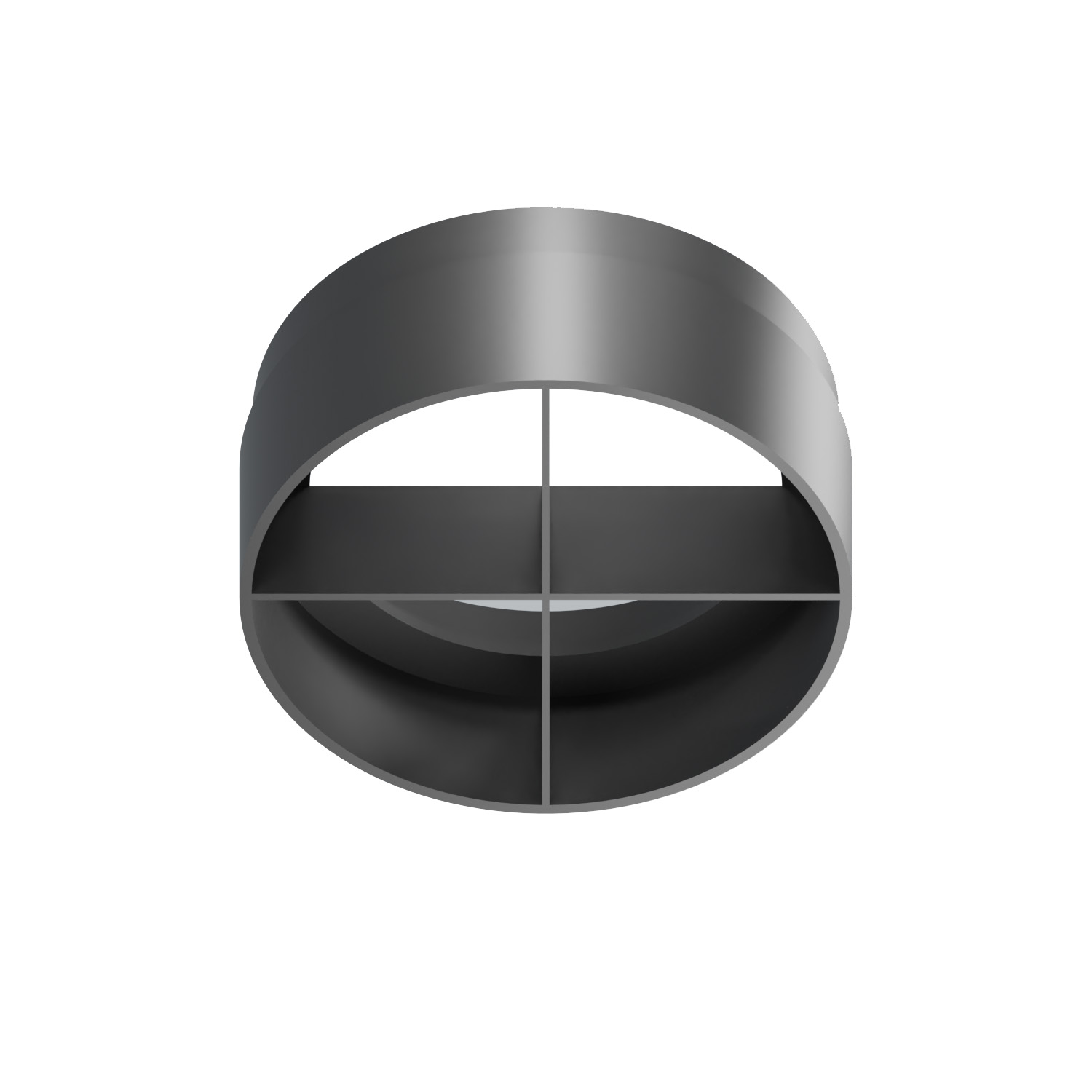

A+ Anti Glare
-
BUGR<19
-
CWall washer
Photometric Files

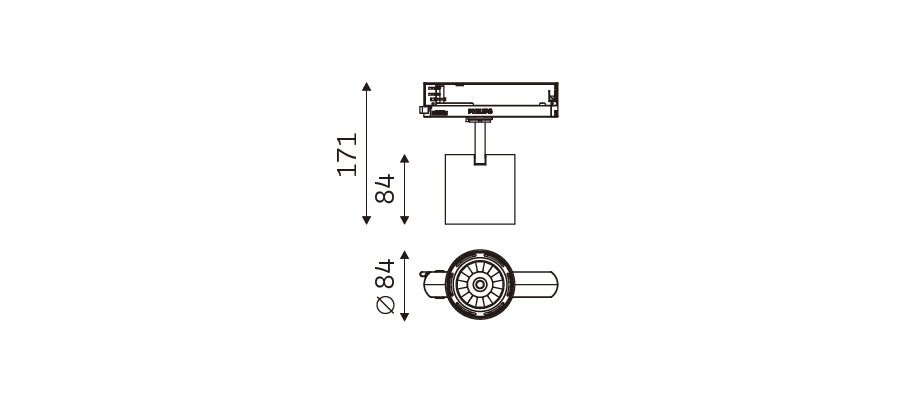

Technical Drawings
