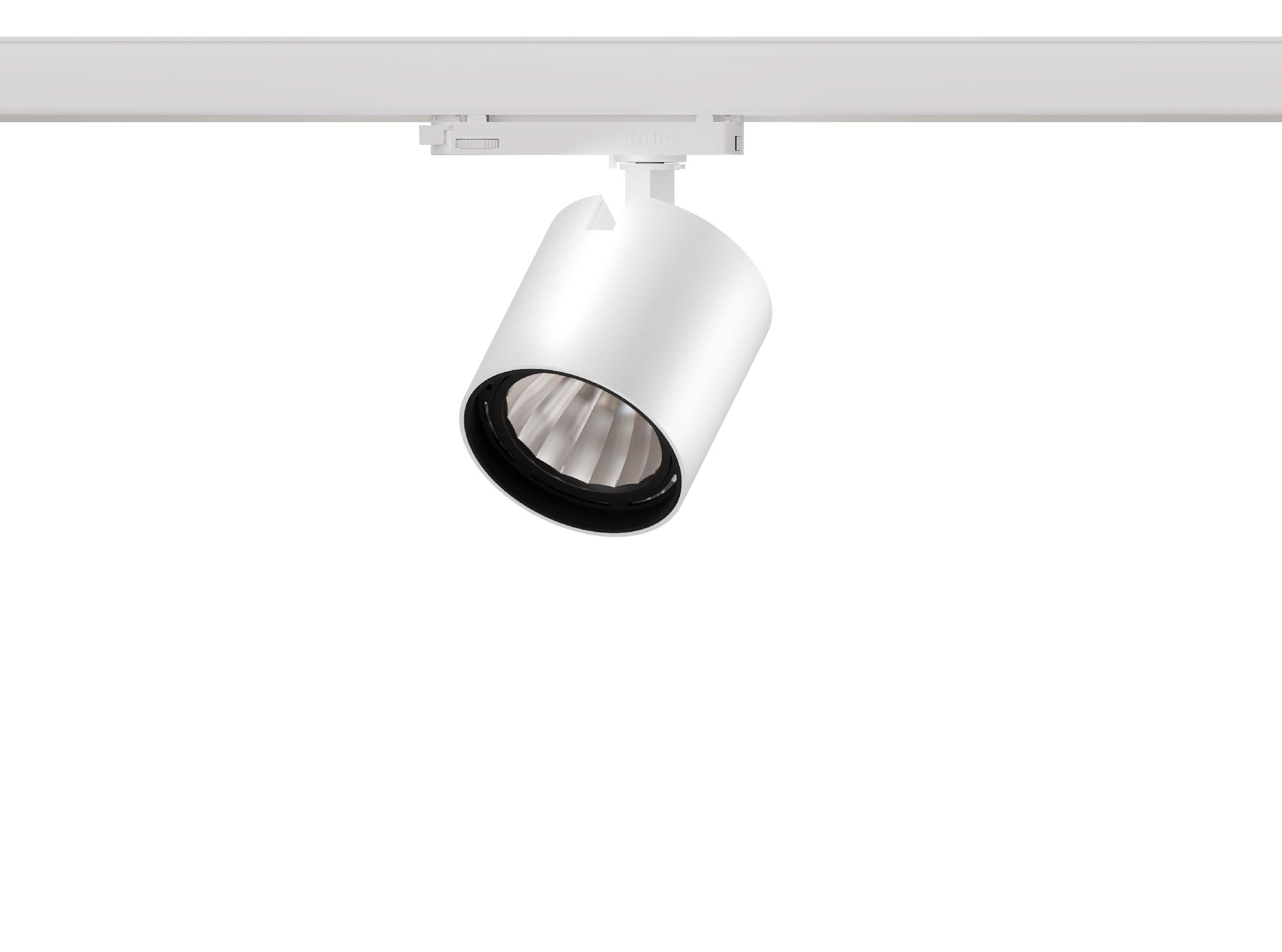

32.10111 High Lumen Pro Track Lighting
| Connected Load | 32W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | Reflector |
| Beam Angle | 18D/25D/47D/64D |
| Track Phases | 1 Circuit/ 3 Circuit |
| Light Distribution | 32.10111 High Lumen Pro Track Lighting |
| Luminous Flux Of The Luminaire | 4251lm |
| Luminaire Efficacy | 132.8lm/W |
| Colour Deviation | SDCM&＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Dali Dim / 0-10V Dim / Triac Dim |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.8Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 25° | ||
| 1 | 13160.81 | 0.44 |
| 2 | 3290.20 | 0.88 |
| 3 | 1462.31 | 1.32 |
| 4 | 822.55 | 1.76 |
| 5 | 526.43 | 2.20 |
Application areas: Commercial spaces, malls, stores, retail projects, hotels, museums and gyms.
Suitable accessories
-
A+ Anti Glare
-
BUGR<19
-
CWall washer

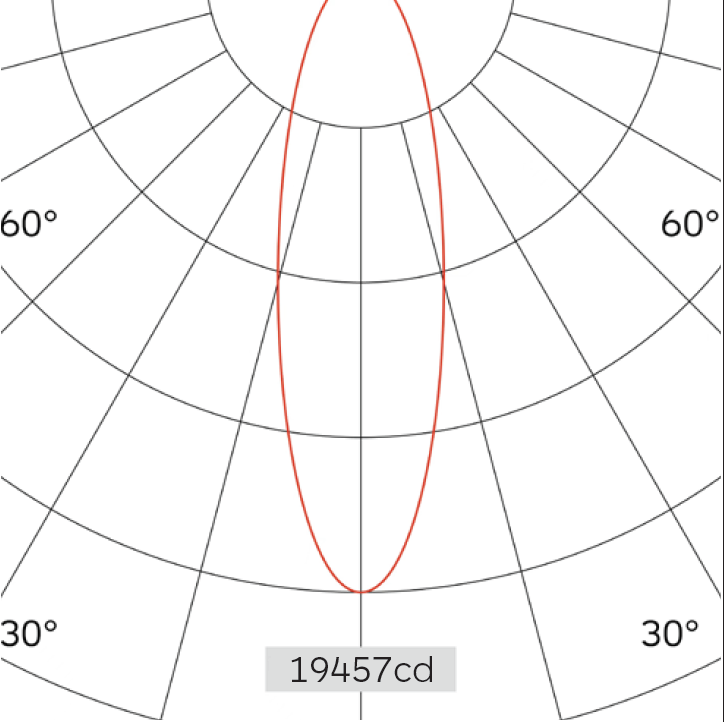

Photometric Files

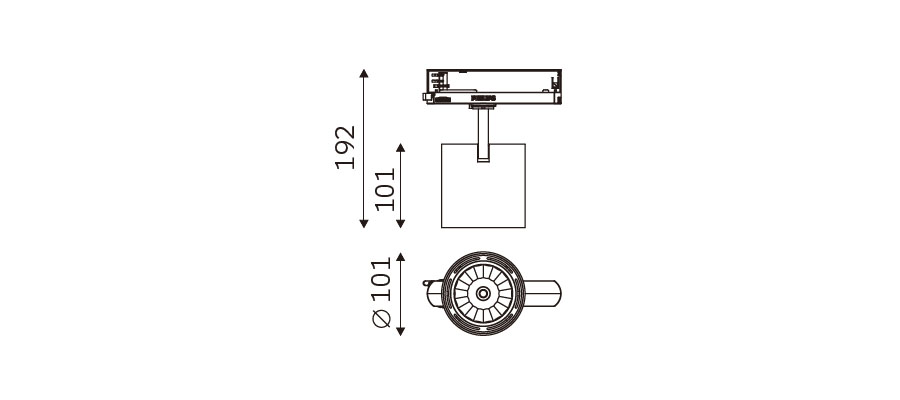

Technical Drawings
