91.10511 TLA Surface Mounted Light
| Connected Load | 13.5W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 17D/26D/34D/58D |
| Installation method | Surface Mounted |
| Light Distribution | 91.10511 TLA Surface Mounted Light |
| Luminous Flux Of The Luminaire | 1484lm |
| Luminaire Efficacy | 109.9lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.8Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 26° | ||
| 1 | 5228.42 | 0.46 |
| 2 | 1307.10 | 0.93 |
| 3 | 580.94 | 1.20 |
| 4 | 326.78 | 1.86 |
| 5 | 209.14 | 2.32 |
Mainly used in high-end commercial space (clothing shops, furniture shops and other brand boutiques, car displays, jewelry, star hotels, high-end clubs, museums, chain stores, brand sales halls, professional windows, counters and other accent lighting places).
Suitable accessories
Photometric Files

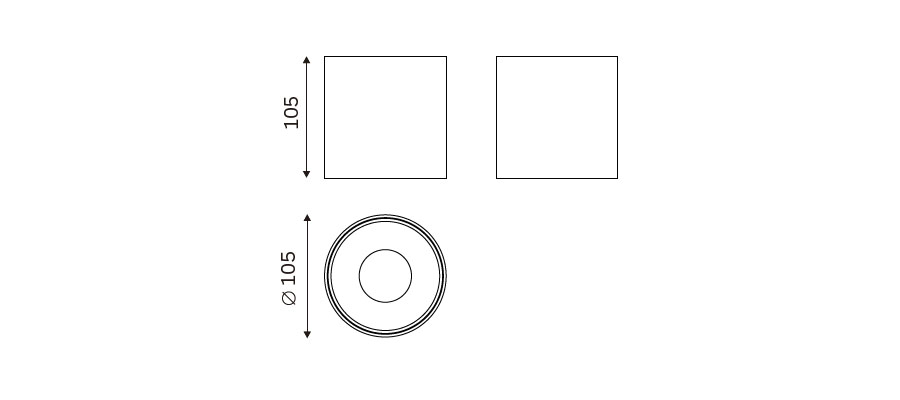

Technical Drawings
