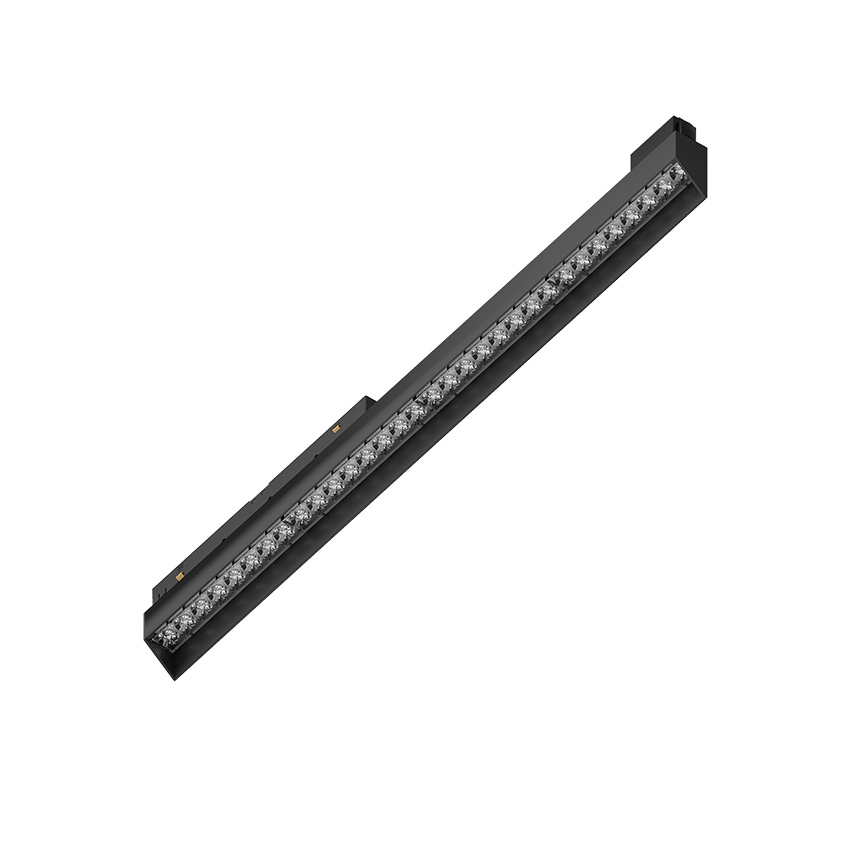

61.02320 SPARK 20 Wall Washer
| Connected Load | 15W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | Lens |
| Track Phases | Low Voltage Track |
| Light Distribution | 61.02320 SPARK 20 Wall Washer |
| Luminous Flux Of The Luminaire | 900lm |
| Luminaire Efficacy | 60lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | SMD |
| Dimming Method | 1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.8Kg |
| Technical Region | Input 48V |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|
It is an individual solution with a high degree of flexibility. All inserts are mounted completely
without tools and held within the profile by a magnetic force. With just one flick of the wrist,
you can adjust the inserts as needed at any time to set the scene for your desired object.
Application areas: residential, hotel, restaurants,retail and other high-end places.
without tools and held within the profile by a magnetic force. With just one flick of the wrist,
you can adjust the inserts as needed at any time to set the scene for your desired object.
Application areas: residential, hotel, restaurants,retail and other high-end places.
Suitable accessories
Download
Photometric Files

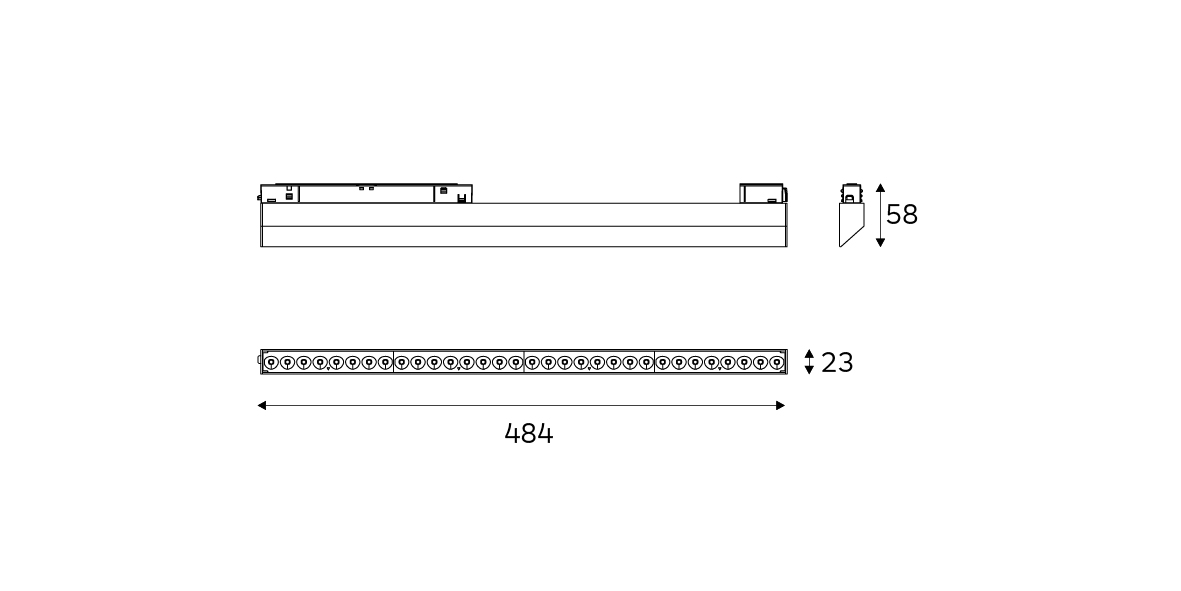

Technical Drawings
