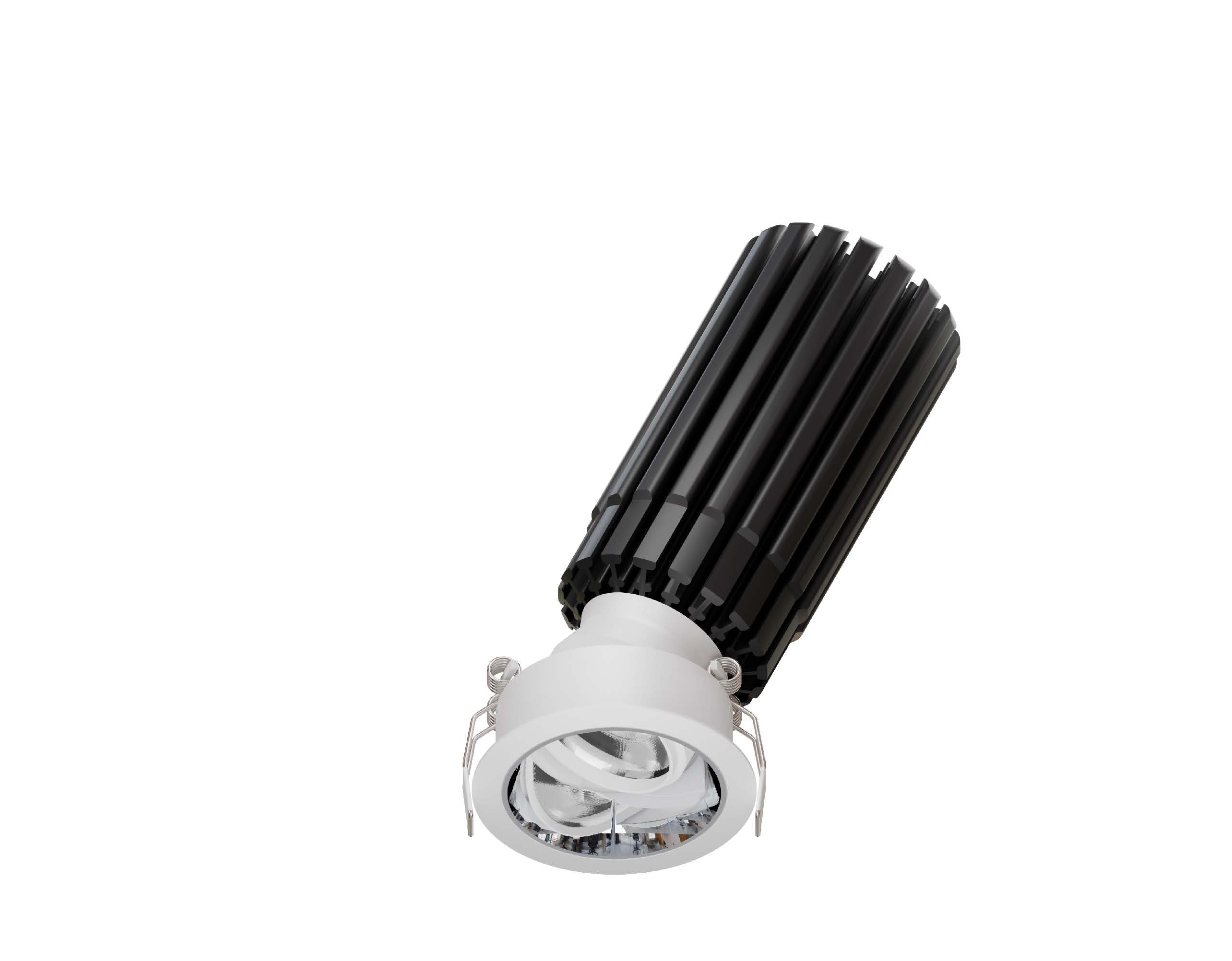

52.06515 X_DRIVE Recessed Downlight
| Connected Load | 28W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 31D/40D/49D/59D |
| Cut Out | 65mm |

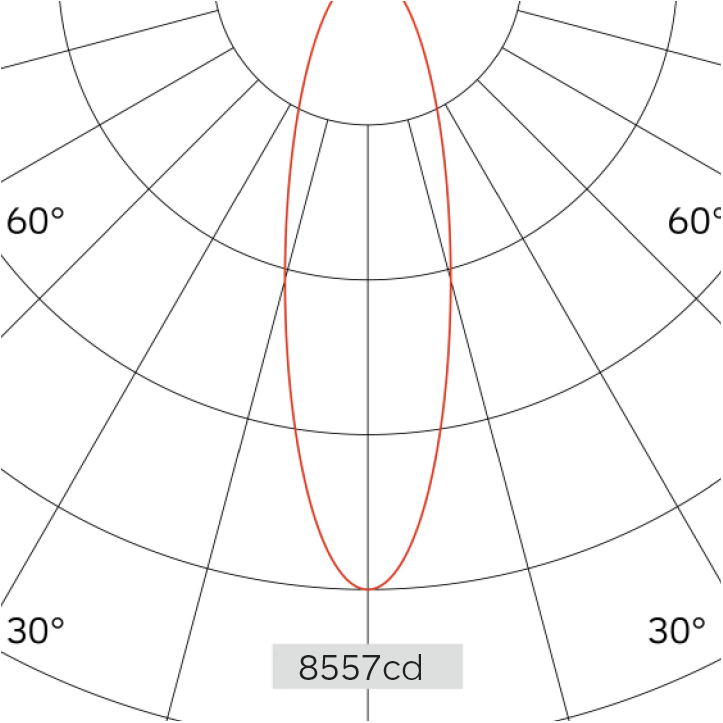

| Light Distribution | 52.06515 X-DRIVE Recessed Downlight |
| Luminous Flux Of The Luminaire | 3127lm |
| Luminaire Efficacy | 111lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.5Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 31° | ||
| 1 | 8557.59 | 0.57 |
| 2 | 2139.4 | 1.14 |
| 3 | 950.84 | 1.71 |
| 4 | 534.85 | 2.28 |
| 5 | 342.3 | 2.84 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

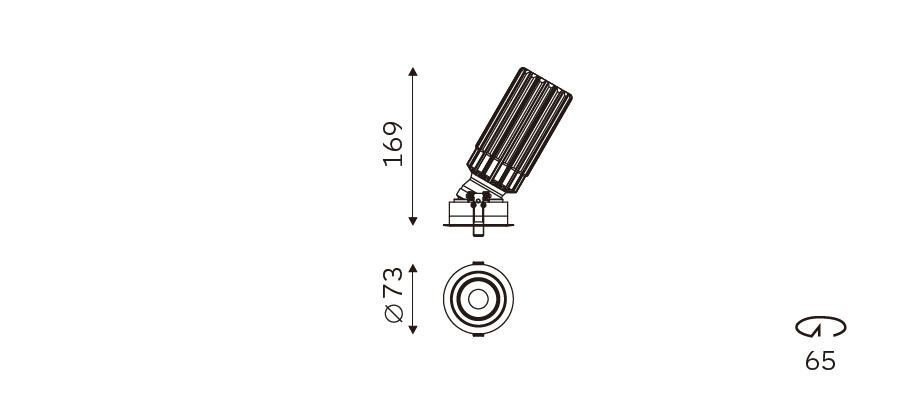

Technical Drawings
