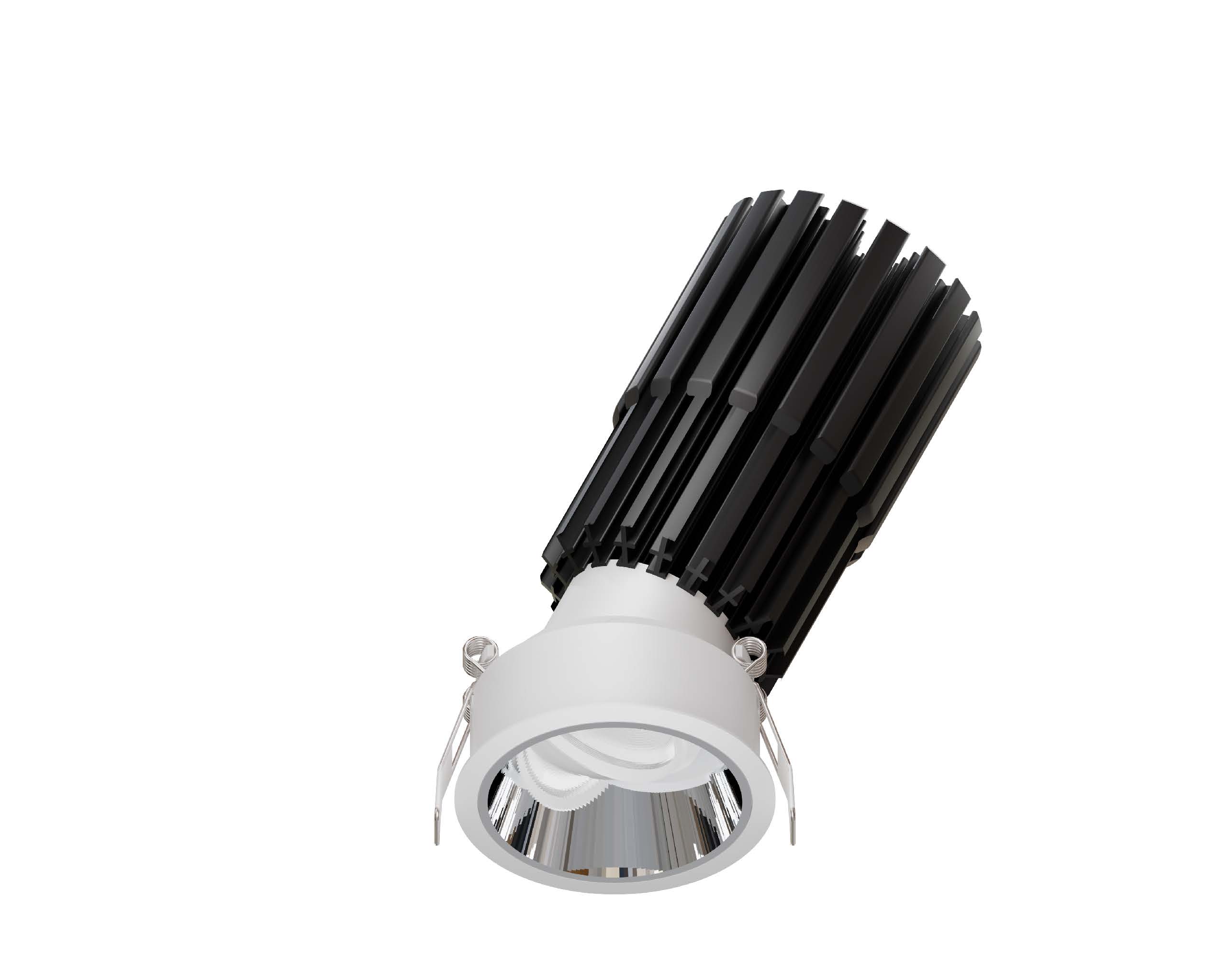

52.07530 X_DRIVE Recessed Downlight
| Connected Load | 35W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 29D/35D/49D/57D |
| Cut Out | 75mm |

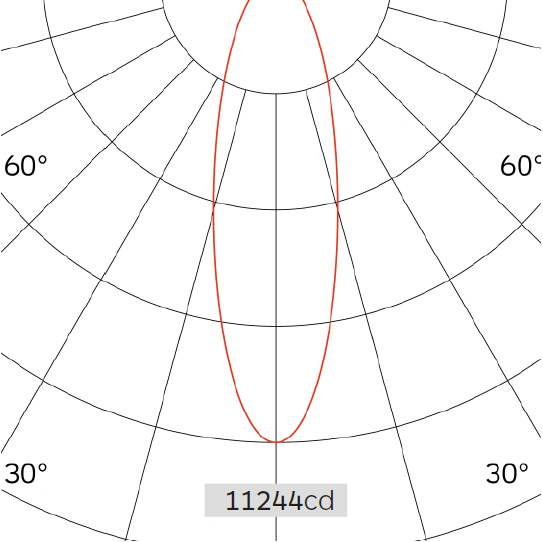

| Light Distribution | 52.07530 X-DRIVE Recessed Downlight |
| Luminous Flux Of The Luminaire | 4126lm |
| Luminaire Efficacy | 117lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.7Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 29° | ||
| 1 | 11244.26 | 0.52 |
| 2 | 2811.06 | 1.04 |
| 3 | 1249.36 | 1.56 |
| 4 | 702.77 | 2.08 |
| 5 | 449.77 | 2.60 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

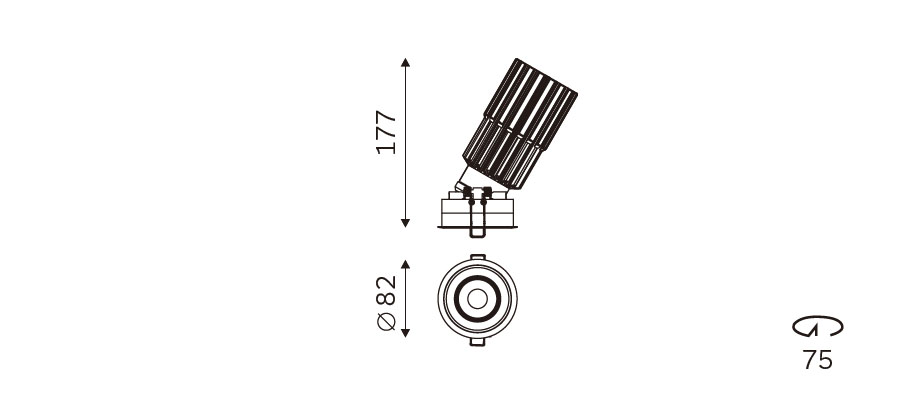

Technical Drawings
